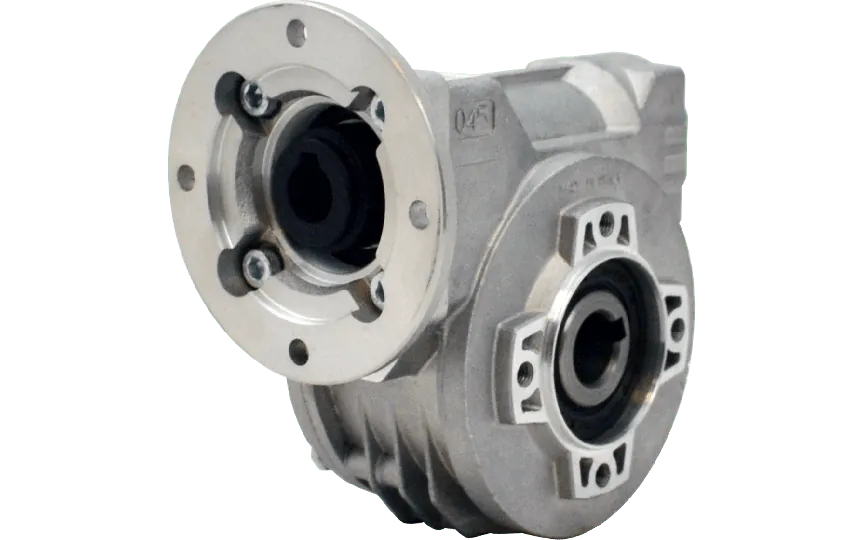

Hydro-Mec 045, worm gear Ø18 hollow shaft, 10:1, input 56B14, aluminium
HV80P045FB02C0-OB3-AIt features a gear size of 045 and a gear ratio of 10:1. The input shaft diameter is 9 mm, while the output is a Ø18 mm hollow shaft. The unit is built with a gear housing made of aluminium, offering a lightweight and corrosion-resistant solution. It includes a 56B14 gear motor interface and achieves an efficiency of 79%. Both BCD input and output are 65 mm, ensuring compatibility with standard motor and load interfaces. This gearbox is well-suited for systems requiring moderate torque transmission in a space-efficient design.
Specifications
Product description
Downloads
€176.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
10:1
BCD input
65
BCD output
65
Efficiency (%)
79
Gear output shaft (mm)
18
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
045
Output speed at 1400 RPM
140
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.57
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Brand description: Hydro-Mec is a renowned Italian manufacturer specializing in high-efficiency power transmission solutions. With decades of experience, Hydro-Mec delivers robust and modular gearbox systems tailored to industrial applications, offering both adaptability and performance. All products are manufactured to ISO quality standards, ensuring reliability and longevity in the harshest environments.Key features, benefits, and applications:
High-strength aluminum housing – Lightweight design facilitates easier handling during installation while maintaining excellent corrosion resistance ideal for humid or chemically exposed industrial environments.
Ø18 mm stainless steel hollow output shaft – Enables direct mounting to driven shafts without additional couplings; resistant to wear, corrosion, and chemical damage, ideal for food processing or pharmaceutical equipment.
Standardized 56B14 input flange – Ensures compatibility with a wide range of IEC motors and enables quick integrations into existing machinery setups.
1-stage worm gear with 10:1 ratio – Offers reliable torque multiplication and speed reduction, perfect for lifts, conveyors, and agitators in material handling and production lines.
Compact frame size 045 – Enables installation in tight mechanical spaces, particularly useful in mobile systems, automated packaging equipment, or compact assembly stations.
High mechanical efficiency of 79% – Reduces energy consumption in continuous-duty applications, optimizing long-term operational costs.
9 mm input shaft – Designed to accept motors with small-diameter shafts, facilitating integration in low-power applications such as small mixers or robotic arms.
Versatile modular design – Allows easy customization and interchangeability with other Hydro-Mec modules, ideal for companies needing rapid maintenance or design flexibility. Recommended Applications:
Conveyor systems in logistics and manufacturing
Automated food processing machinery
Industrial packaging lines
Light-duty mixers and agitators
Textile and printing equipment
High-strength aluminum housing – Lightweight design facilitates easier handling during installation while maintaining excellent corrosion resistance ideal for humid or chemically exposed industrial environments.
Ø18 mm stainless steel hollow output shaft – Enables direct mounting to driven shafts without additional couplings; resistant to wear, corrosion, and chemical damage, ideal for food processing or pharmaceutical equipment.
Standardized 56B14 input flange – Ensures compatibility with a wide range of IEC motors and enables quick integrations into existing machinery setups.
1-stage worm gear with 10:1 ratio – Offers reliable torque multiplication and speed reduction, perfect for lifts, conveyors, and agitators in material handling and production lines.
Compact frame size 045 – Enables installation in tight mechanical spaces, particularly useful in mobile systems, automated packaging equipment, or compact assembly stations.
High mechanical efficiency of 79% – Reduces energy consumption in continuous-duty applications, optimizing long-term operational costs.
9 mm input shaft – Designed to accept motors with small-diameter shafts, facilitating integration in low-power applications such as small mixers or robotic arms.
Versatile modular design – Allows easy customization and interchangeability with other Hydro-Mec modules, ideal for companies needing rapid maintenance or design flexibility. Recommended Applications:
Conveyor systems in logistics and manufacturing
Automated food processing machinery
Industrial packaging lines
Light-duty mixers and agitators
Textile and printing equipment
