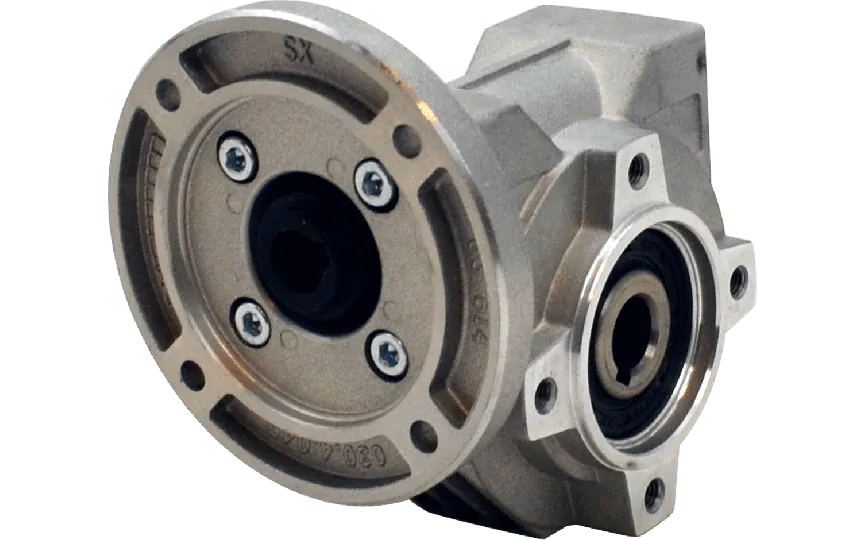

Hydro-Mec 030, worm gear Ø14 SS hollow shaft, 40:1, input 63B14, aluminium
HV80P030FB06I0-PB3-B-OFThe Hydro-Mec 030, worm gearbox Ø14 stainless steel hollow shaft, 40:1, input 63B14, aluminium is designed for compact power transmission in demanding environments. Featuring a 40:1 ratio and 57% efficiency, it is suitable for precise speed reduction tasks. The gear housing material is aluminium, offering corrosion resistance and low weight. Designed with a gear input shaft diameter of 11 mm and a gear output shaft diameter of 14 mm, this unit supports a stainless steel Ø14 mm hollow output shaft. It is compatible with motor interface 63B14. BCD specifications include input: 75 mm and output: 65 mm. The gearbox size is 030, fitting installations where space is limited.
Specifications
Product description
Downloads
€200.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
40:1
BCD input
75
BCD output
65
Efficiency (%)
57
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
030
Output speed at 1400 RPM
35
Max output torque (Nm)
20
Max kW input at 1400 rpm
0.13
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Product: Hydro-Mec 030 Worm Gearbox with Ø14 mm Stainless Steel Hollow Shaft, 40:1, Input 63B14, AluminiumKey Features, Advantages, and Application Possibilities:
Robust 40:1 gear ratio provides high torque reduction for precise motion control in industrial automation systems. Ideal for conveyors, dosing systems, or actuated valves.
Input flange 63B14 ensures compatibility with IEC standard motor interfaces, allowing seamless motor integration and easy system design for technicians and engineers.
Ø14 mm stainless steel hollow output shaft (SS) offers superior corrosion resistance, making it perfect for applications in harsh or hygienic environments such as food processing or chemical handling.
Lightweight yet strong cast aluminum housing significantly reduces overall system weight while maintaining strength — beneficial for mobile equipment and machine tools where weight-saving is critical.
Compact size 030 is suitable for installations where space is limited, such as OEM embedded systems or compact automation units.
Input shaft diameter Ø11 mm provides compatibility with common motor couplings; ideal for direct or pulley-driven transmission setups in compact assembly cells.
57% efficiency ensures reliable performance in continuous operation with acceptable power loss characteristics, making it suitable for medium-duty loads.
Can be deployed in various industrial automation solutions, including packaging lines, AGVs (automated guided vehicles), material transport belts, and rotary indexing tables.
Modularity and European quality guarantee long service life and simplified maintenance processes, reducing downtime and total cost of ownership.This gearbox is a solid solution for technical specialists seeking compact, high-reduction drives with corrosion-resistant output options in demanding industrial environments.
Robust 40:1 gear ratio provides high torque reduction for precise motion control in industrial automation systems. Ideal for conveyors, dosing systems, or actuated valves.
Input flange 63B14 ensures compatibility with IEC standard motor interfaces, allowing seamless motor integration and easy system design for technicians and engineers.
Ø14 mm stainless steel hollow output shaft (SS) offers superior corrosion resistance, making it perfect for applications in harsh or hygienic environments such as food processing or chemical handling.
Lightweight yet strong cast aluminum housing significantly reduces overall system weight while maintaining strength — beneficial for mobile equipment and machine tools where weight-saving is critical.
Compact size 030 is suitable for installations where space is limited, such as OEM embedded systems or compact automation units.
Input shaft diameter Ø11 mm provides compatibility with common motor couplings; ideal for direct or pulley-driven transmission setups in compact assembly cells.
57% efficiency ensures reliable performance in continuous operation with acceptable power loss characteristics, making it suitable for medium-duty loads.
Can be deployed in various industrial automation solutions, including packaging lines, AGVs (automated guided vehicles), material transport belts, and rotary indexing tables.
Modularity and European quality guarantee long service life and simplified maintenance processes, reducing downtime and total cost of ownership.This gearbox is a solid solution for technical specialists seeking compact, high-reduction drives with corrosion-resistant output options in demanding industrial environments.
