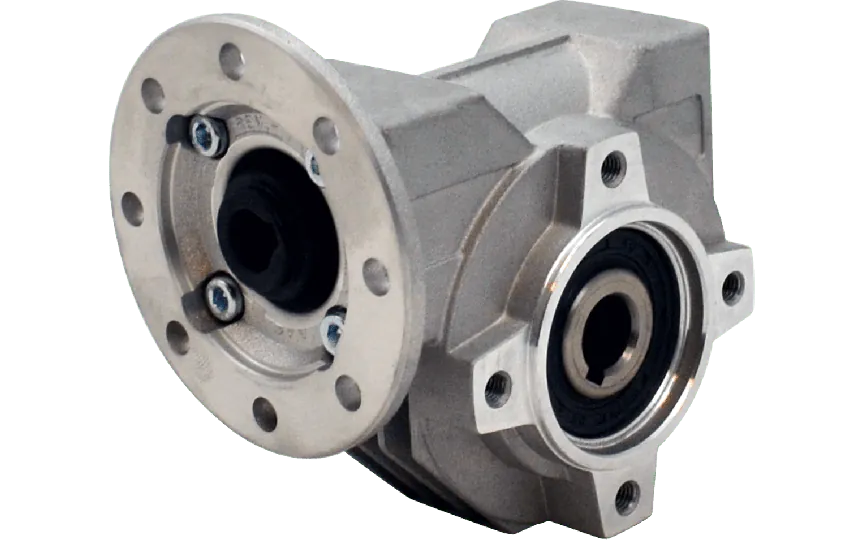

Hydro-Mec 030, worm gear Ø14 hollow shaft, 15:1, input 56B14, aluminium
HV80P030FB03C0-OB3-AIt features a 15:1 reduction ratio and supports a 56B14 motor interface for compatibility with standard IEC motors. The input shaft diameter is 9 mm and the output shaft diameter is 14 mm, suitable for a range of industrial applications. Constructed from aluminium gear housing, it balances strength with lightweight design. The gear has a size 030 format and delivers 73% efficiency. With BCD input and output at 65, the unit is designed for reliable and consistent performance in technical environments.
Specifications
Product description
Downloads
€138.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
15:1
BCD input
65
BCD output
65
Efficiency (%)
73
Gear output shaft (mm)
14
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
030
Output speed at 1400 RPM
93
Max output torque (Nm)
19
Max kW input at 1400 rpm
0.25
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Hydro-Mec, a highly respected manufacturer based in Italy, is known for producing modular, high-performance gearboxes and transmission solutions. Their products combine precision engineering with durability, making them an ideal choice for demanding industrial applications. The Hydro-Mec 030 Worm Gearbox is no exception—delivering compact power transmission with efficiency and versatility for numerous applications.Key features, benefits, and application options:
Compact gearbox size 030: Ideal for installations with space constraints in automation systems, conveyor technology, and packaging machinery. Offers high performance at a small footprint.
Gear ratio 15:1: Allows for significant torque amplification and speed reduction, optimizing output for heavy-load or precision-driven mechanical systems.
Hollow output shaft Ø14 mm – Stainless Steel (SS): Corrosion-resistant and ideal for applications in humid or washdown environments such as food processing, chemical processing, and pharmaceutical manufacturing.
Aluminium gear housing: Lightweight yet highly durable material resists corrosion and supports efficient heat dissipation—perfect for continuous-duty usage in industrial environments.
Standard interface 56B14 flange motor mounting: Enables seamless integration with B14 flange electric motors, providing flexibility and faster installation for OEMs and machine builders.
Input shaft Ø9 mm: Matches with standard-sized couplings and ensures smooth and direct torque transfer from the connected motor or drive system.
73% transmission efficiency: Delivers reliable performance with reduced energy loss, contributing to energy-efficient system designs where operating cost and thermal performance matter.
Stainless Steel (SS) hollow shaft variant: Offers superior resistance to corrosion, extending product life in chemically aggressive or hygienic environments.
Ideal for diverse applications: Frequently used in conveyors, mixers, automated production systems, bottling lines, and mechanical handling equipment where accurate speed and torque control are critical. The Hydro-Mec 030 Worm Gearbox represents efficiency and adaptability in a premium modular drive solution suitable for modern industrial needs.
Compact gearbox size 030: Ideal for installations with space constraints in automation systems, conveyor technology, and packaging machinery. Offers high performance at a small footprint.
Gear ratio 15:1: Allows for significant torque amplification and speed reduction, optimizing output for heavy-load or precision-driven mechanical systems.
Hollow output shaft Ø14 mm – Stainless Steel (SS): Corrosion-resistant and ideal for applications in humid or washdown environments such as food processing, chemical processing, and pharmaceutical manufacturing.
Aluminium gear housing: Lightweight yet highly durable material resists corrosion and supports efficient heat dissipation—perfect for continuous-duty usage in industrial environments.
Standard interface 56B14 flange motor mounting: Enables seamless integration with B14 flange electric motors, providing flexibility and faster installation for OEMs and machine builders.
Input shaft Ø9 mm: Matches with standard-sized couplings and ensures smooth and direct torque transfer from the connected motor or drive system.
73% transmission efficiency: Delivers reliable performance with reduced energy loss, contributing to energy-efficient system designs where operating cost and thermal performance matter.
Stainless Steel (SS) hollow shaft variant: Offers superior resistance to corrosion, extending product life in chemically aggressive or hygienic environments.
Ideal for diverse applications: Frequently used in conveyors, mixers, automated production systems, bottling lines, and mechanical handling equipment where accurate speed and torque control are critical. The Hydro-Mec 030 Worm Gearbox represents efficiency and adaptability in a premium modular drive solution suitable for modern industrial needs.
