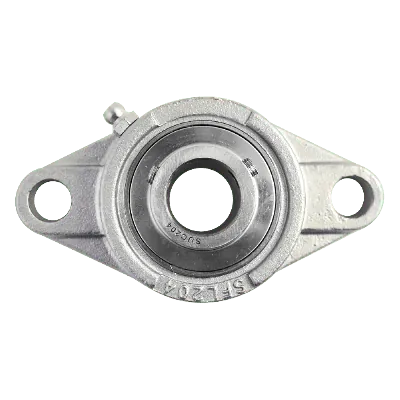

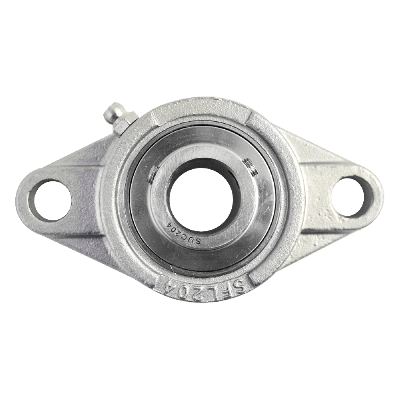

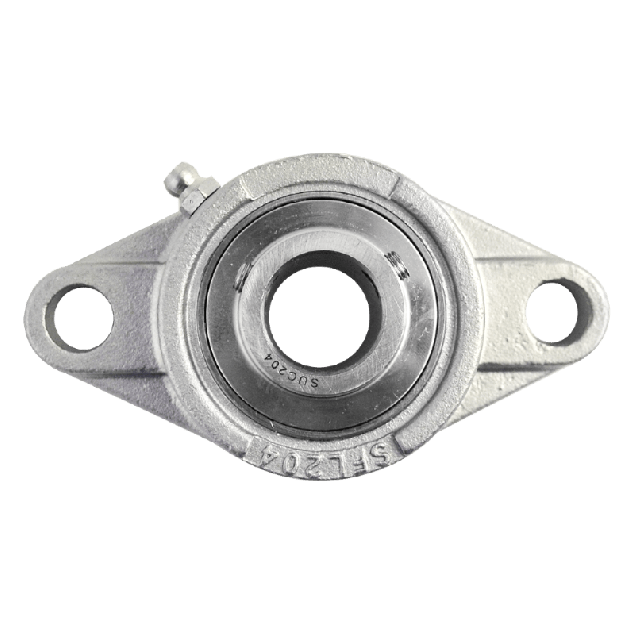

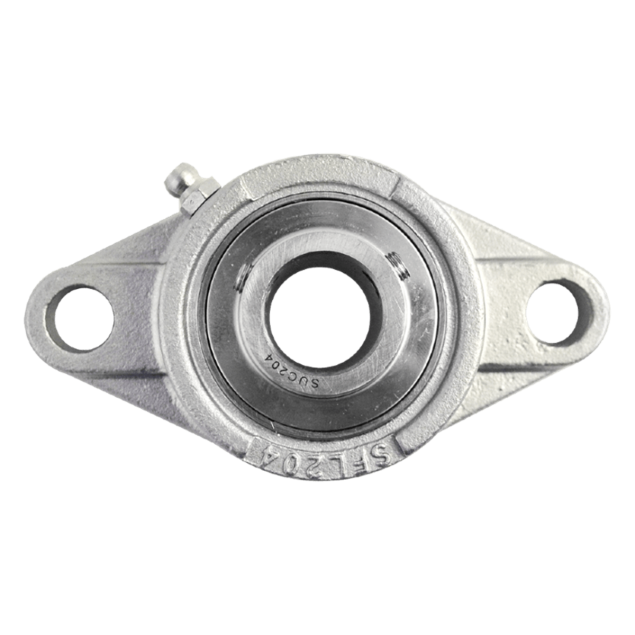

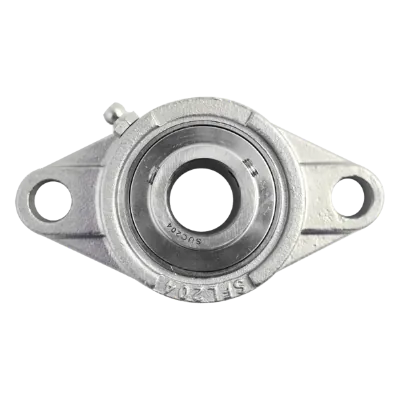

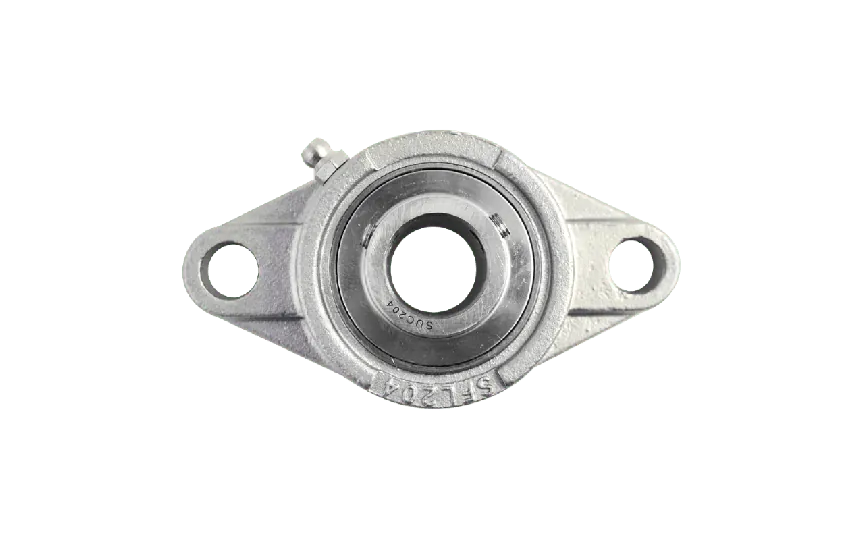

Flange bearing SFL Ø20, 2-bolt, stainless steel
SUCFL204SThe SFL 2-bolt Ø20 stainless steel flange bearing, is a solution for the food industry and other demanding environments where hygiene and durability are paramount. Designed for easy installation and minimal maintenance, this bearing unit offers performance and reliability
Specifications
Product description
Downloads
€26.41
In stock
Expected shipment: 04-11-2024
More Information
Bolt size
M10
Grease nipple
Straight
Hole distance (mm)
90
Shaft size (mm)
Ø20
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
Color
Black
Description
Key features:
- Screw set lock for secure and stable mounting
- Maintenance-free operation, except for regular greasing when necessary
- Wide operating temperature range from -20°C to +120°C
- No surface coating required, ensuring long-lasting performance
Materials:
- Stainless steel housings, AISI 304
- SUC stainless steel bearings, AISI 440C
- Stainless steel grease nipple for convenient re-lubrication
