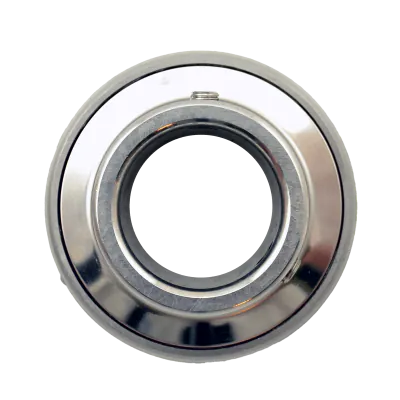

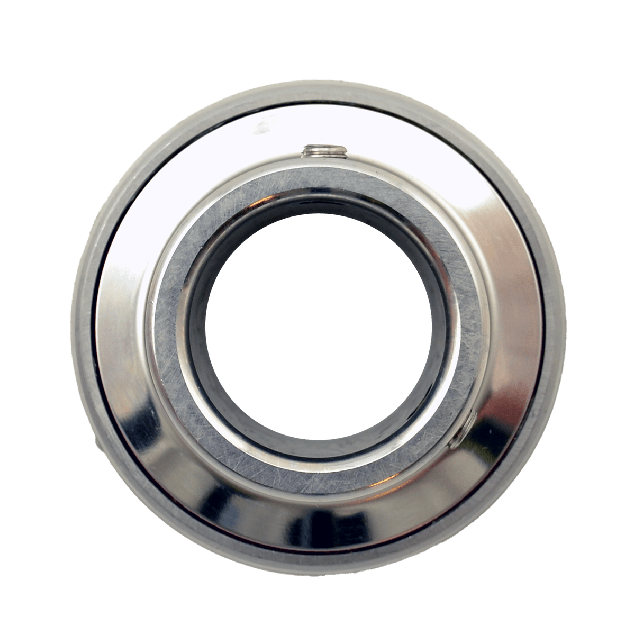

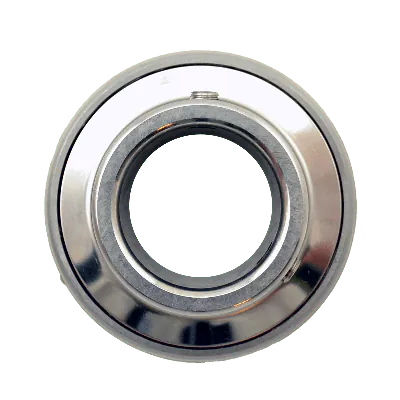

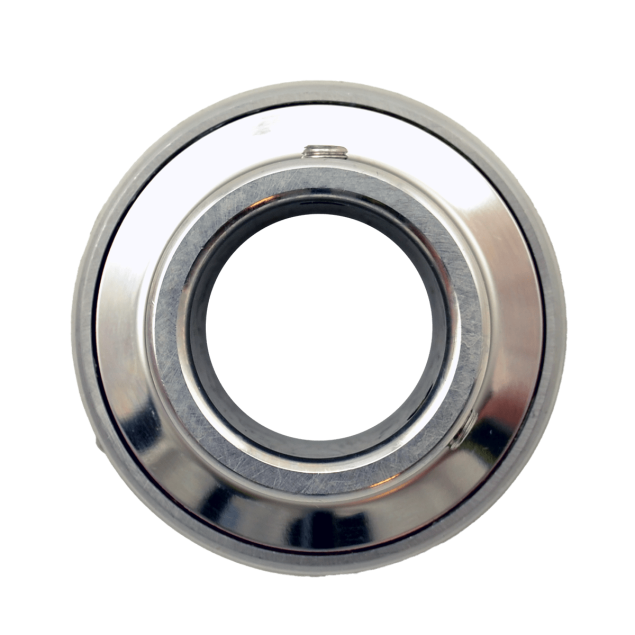

Insert bearing SUC204 Ø20, stainless steel
SUC204
Specifications
Product description
Downloads
€18.23
Made to order
Expected shipment: 28-03-2025
More Information
Bolt size
M6
Grease nipple
None
Shaft size (mm)
Ø20
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Mounting
Set screw
Description
Key features:
- Wide light duty inner race with set screw locking ensures a secure fit and easy installation.
- Spherical outer ring accommodates misalignment while maintaining stability and alignment.
- Lubrication groove with oil hole on set screw side comes as standard, simplifying maintenance.
- Anti-rotation pin on side opposite grease groove provides additional security against rotational forces.
- Constructed from high-quality stainless steel bearing insert material for longevity in challenging environments.
