BEGE flange encoder MN-140-24-00029, 2 pulses, 2m cable, aluminium

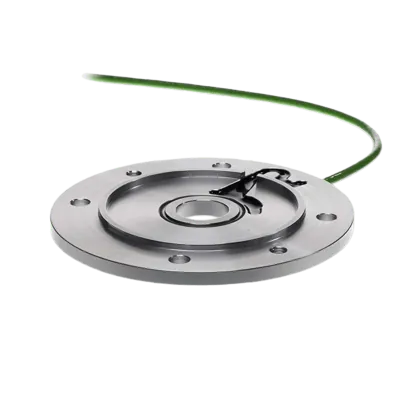

HV500245The MIG NOVA+ flange encoder from BEGE with a flange size of 140mm. This reliable encoder is designed to meet the demands of environments where hygiene and precision are of importance. With its compact size and robust construction, the MIG NOVA+ ensures accurate signal measurement and performance in various industrial applications.
Specifications
Product description
Downloads
€292.63
Made to order
Expected shipment: 05-03-2025
More Information
IP classification
IP 55
Pulses
2
Outer diameter (mm)
Ø140
Flange thickness (mm)
9
Material
Aluminium
Cable length (m)
2
Shaft diameter (mm)
Ø24
BCD norm
115
Description
Key features:
- Magnetic rotary encoder for precise and reliable signal detection.
- High signal quality and processing capabilities.
- Compatible with IEC standard electric motors, ensuring easy integration.
- Stable contactless signal measurement for reliable operation.
- The standard IP55 rating can be enhanced to IP67 with the appropriate sealant between the motor and machine flange.
-
Compact design eliminates the need for an extended fan cover.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Constructed from durable and lightweight aluminium.
- Hub: Made from stainless steel.
