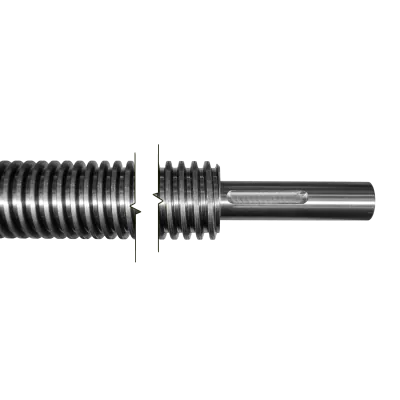

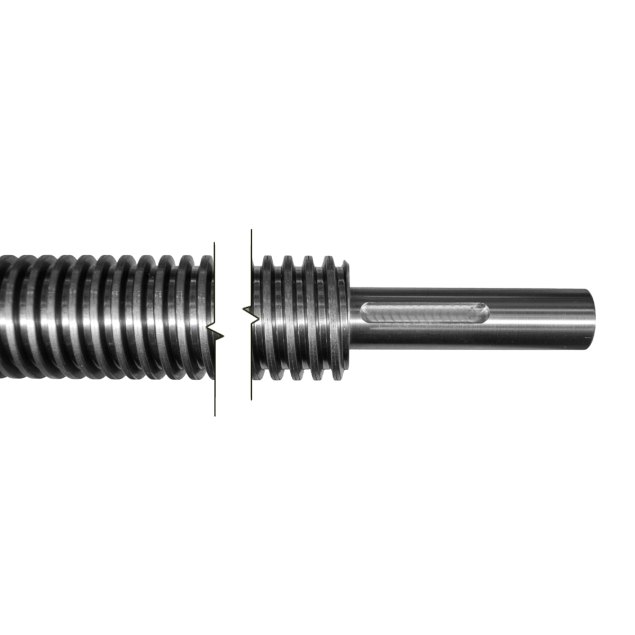

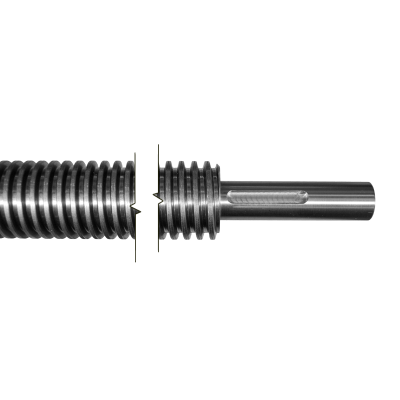

TR40x7 Trapezoidal spindle cut to length, externally machined, Ø25x95 with keyway, supplied including spring, screw and washer
TR40x7HulThe TR40x7 trapezoidal spindle is a precision-crafted component designed for high-performance applications. It features an external machining finish, with a diameter of 25mm and a length of 95mm, complete with a keyway for secure attachment. This spindle is customizable to your specific length requirements, up to a maximum of 2999mm. Available in robust steel or acid-proof stainless steel, it ensures durability and longevity. The spindle operates seamlessly with standard gears, allowing the nut to move as it rotates. Included with the spindle are essential fittings: a parallel key A H9 8x7x70, a lock washer M10, and a DIN 7991 -10.9 M10x25 insex screw UH, ensuring a complete solution for your mechanical needs.
Here's how to set up and purchase one of our custom length spindles:
1: Select material
2: Enter length in millimeters
3: Press the “Calculate price” button
Note: Max length is 2999mm
More Information
Description
Key features:
- Customizable length: The TR40x7 trapezoidal spindle can be precisely cut to your required length, with a maximum extension of 2999mm.
- Material options: Choose from durable steel or acid-proof stainless steel materials.
- Externally machined: Features a high-quality external machining finish, with a diameter of Ø25x95mm.
- Compatibility: Designed to work in conjunction with standard gears, the spindle facilitates the movement of the nut as it rotates.
- Included components: Supplied with a parallel key A H9 8x7x70, a lock washer M10, and a DIN 7991 -10.9 M10x25 insex screw UH.
