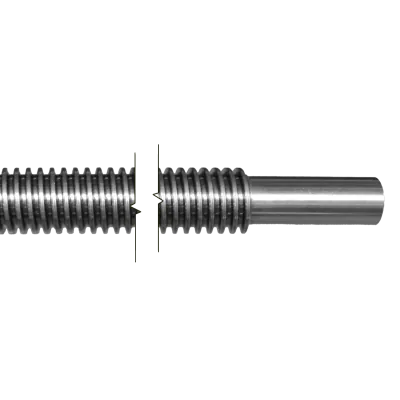

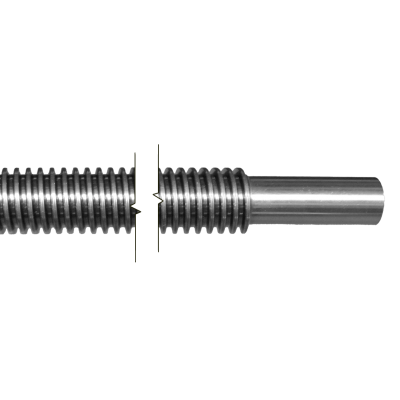

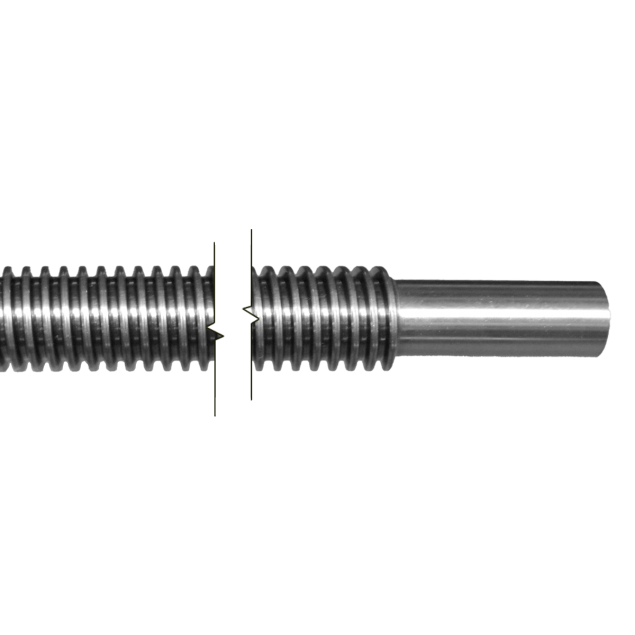

TR30x6 Trapezoidal spindle cut to length, outer end Ø18K6x30
TR30x6T1The TR30x6 trapezoidal spindle, is designed to be cut to the exact length you need, up to a maximum of 2999mm. It works with gears that have a built-in nut, allowing for the spindle to move and facilitate precise motion control. Available in steel and acid-proof stainless steel, it caters to a variety of environmental conditions. With an outer end size of Ø18K6x30, it's engineered for compatibility and performance.
Here's how to set up and purchase one of our custom length spindles:
1: Select material
2: Enter length in millimeters
3: Press the “Calculate price” button
Note: Max length is 2999mm
Specifications
Product description
Downloads
Select options to see the price
Excluded taxes and delivery costs
More Information
Thread and metric
TR30X6
Max. lenght
2999mm
Description
Key features:
- Customizable length: Can be cut to the desired length, with a maximum reach of 2999mm.
- Integrated nut mechanism: Works in conjunction with gears featuring a built-in nut for enhanced motion control.
- Material versatility: Offered in steel and acid-proof stainless steel to suit diverse environmental conditions.
- Engineered compatibility: Designed with an outer end size of Ø18K6x30 for optimal performance and compatibility.
