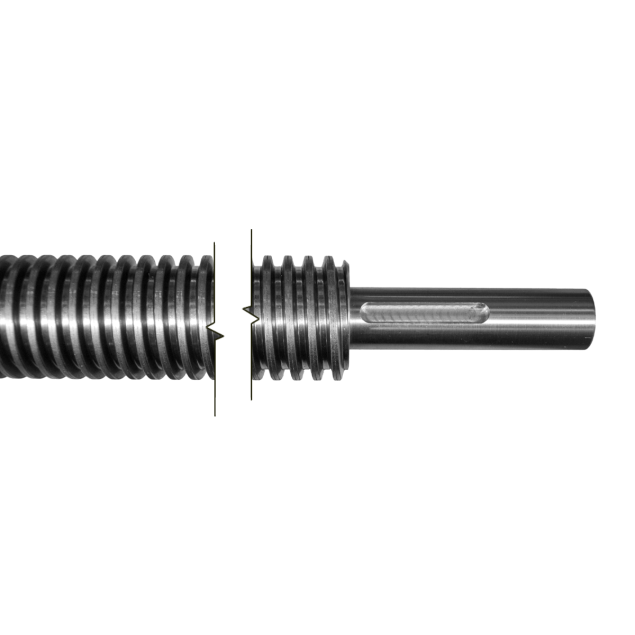

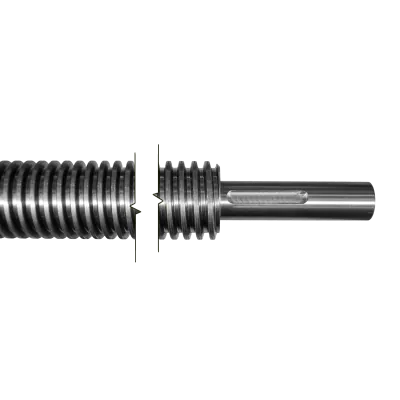

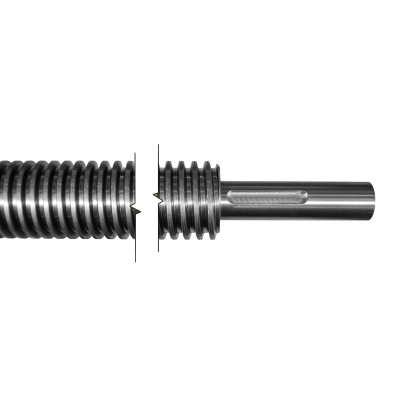

TR30x6 Trapezoidal spindle cut to length, machined outside Ø20x94 with keyway, supplied including spring, screw and washer
TR30x6HulThe TR30x6 is a trapezoidal spindle tailored for precise linear movements. Cut to a maximum length of 2999mm to fit your specific needs and machined with an outer diameter of Ø20x94, including a keyway for easy gear integration. Supplied with a parallel key A H9 6x6x50 and a DIN 7991-10.9 M8X20 insex screw, and worm shaft lock washer for worm shaft. When paired with a standard gear, the spindle turns, driving the nut to move along its path. Choose from steel or stainless steel acid proof.
Here's how to set up and purchase one of our custom length spindles:
1: Select material
2: Enter length in millimeters
3: Press the “Calculate price” button
Note: Max length is 2999mm
More Information
Description
Key features:
- Trapezoidal spindle design for precise linear movements.
- Customizable length up to 2999mm to meet specific requirements.
- Outer diameter machined at Ø20x94, featuring a keyway for straightforward gear integration.
- Includes a parallel key A H9 6x6x50, DIN 7991-10.9 M8X20 insex screw, and worm shaft lock washer for secure assembly.
- Compatible with standard gears, enabling the spindle to rotate and drive the nut along its path.
- Material options include steel or acid-proof stainless steel for durability and longevity.
