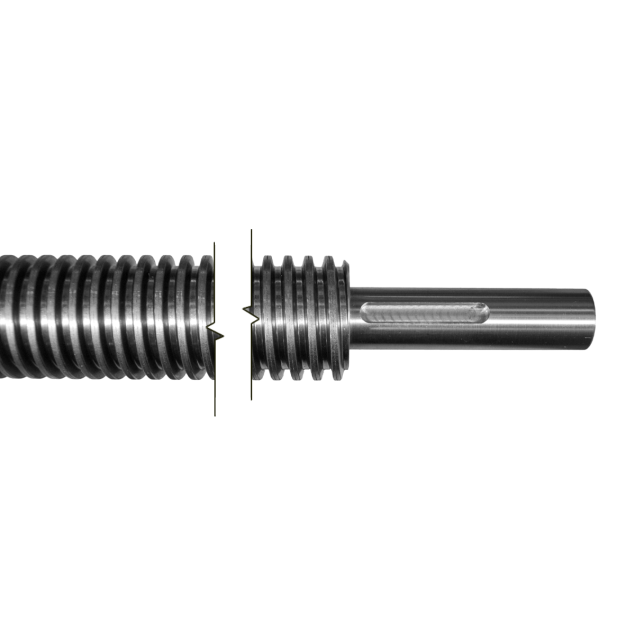

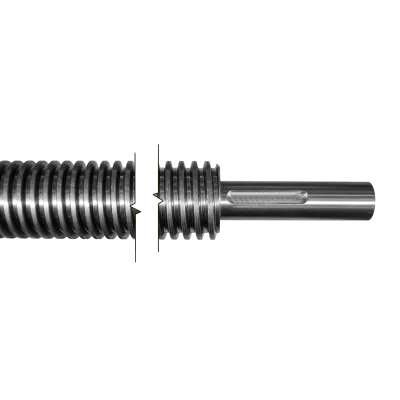

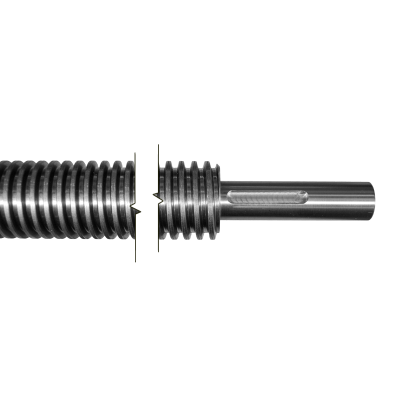

TR24x5 Trapezoidal spindle cut to length, Ø18x84 with keyway, incl. spring, screw and washer
TR24x5HulThe TR24x5 is a trapezoidal spindle, designed to fit a wide range of industrial needs. It is customizable in length, allowing for precise cuts up to a maximum of 2999mm. It can be made from either steel or acid-resistant stainless steel. This spindle integrates seamlessly with standard gears, so it's the spindle that rotates and the nut that moves. It comes with a parallel key A H9 6x6x50, a lock washer for the worm shaft and a DIN 7991-10.9 M8x20 insex screw.
Here's how to set up and purchase one of our custom length spindles:
1: Select material
2: Enter length in millimeters
3: Press the “Calculate price” button
Note: Max length is 2999mm
Specifications
Product description
Downloads
Select options to see the price
Excluded taxes and delivery costs
Out of stock
More Information
Thread and metric
TR24x5
Max. lenght
2999mm
Pressure plate
No
Description
Key features:
- Customizable design: The TR24x5 trapezoidal spindle is customizable and allows for precise cuts up to 2999mm.
- Material durability: Available in robust steel or acid-resistant stainless steel, it ensures long-term durability and resistance in different operating conditions.
- Seamless integration: Designed for compatibility, it integrates easily with standard gears for a smooth transition from rotary to linear motion.
- Complete assembly kit: Comes equipped with a spring, screw, and washer, along with a parallel key A, a worm shaft lock washer, and a DIN 7991-10.9 M8x20 insex screw.
