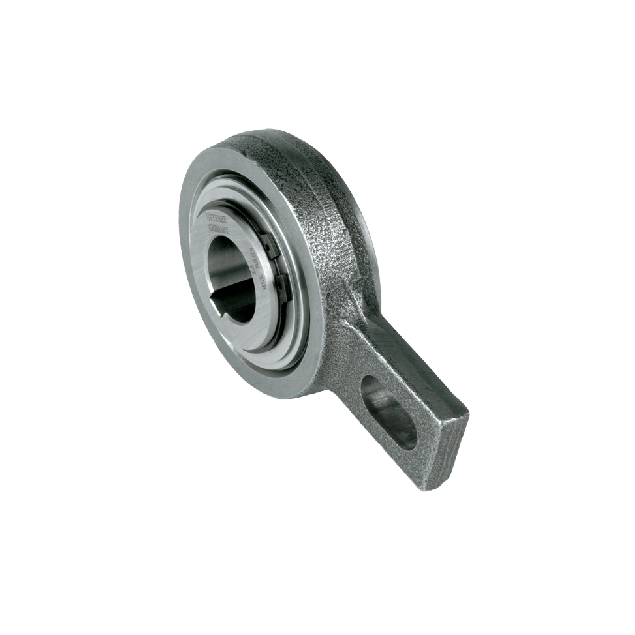

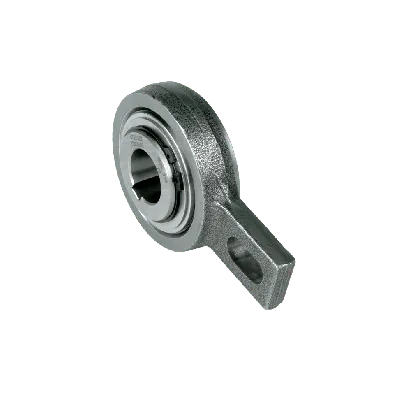

Stieber freewheel RSBW 80 steel
HV73100640The Stieber freewheel RSBW 80 is a DC sprag-type freewheel, designed as a compact and reliable backstop for demanding applications.
The unit is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield-protected O-rings. It is delivered grease-lubricated and ready for installation in either horizontal or vertical position.
Primarily used as a backstop, the RSBW provides very high torque capacity while requiring minimal installation space. The design makes it suitable for harsh environments including high humidity or water splash areas.
Torque is restrained by a torque arm and bolt: the bolt, fixed to the machine frame, passes through the torque arm slot to prevent rotation. Proper radial clearance of 1–3% of the slot width must be maintained for correct function.
Made to order
Expected shipment:
More Information
Description
Key features:
- DC sprag type: The freewheel operates using a dependable DC sprag mechanism, ensuring smooth engagement and disengagement for optimal performance.
- Self contained design: The RSBW freewheel is self-contained, simplifying installation and maintenance processes.
- Plain bearings for low rotational speeds: Equipped with plain bearings, this freewheel allows smooth rotation at low speeds, reducing wear and increasing longevity.
- Sealed with shield protected O rings: The freewheel is securely sealed using shield-protected O rings, providing enhanced protection against contaminants and ensuring reliability in various environments.
- Grease lubricated: Each freewheel comes pre-greased, ready for installation, reducing downtime and enhancing efficiency.
- Versatile installation: It can be easily installed in both horizontal and vertical positions, offering flexibility in different industrial setups.
- High torque capacity: Primarily used as a backstop, the RSBW freewheel boasts a high torque capacity, making it suitable for heavy-duty applications.
- Space saving design: With a compact structure, it demands minimal space, making it ideal for installations with limited room.
- Suitable for challenging environments: The design enables reliable operation in difficult conditions like high humidity or areas prone to water splashes, ensuring long-lasting performance.
