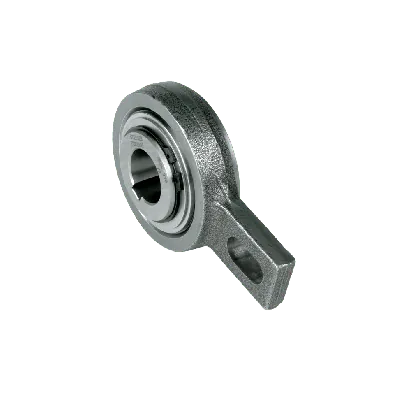

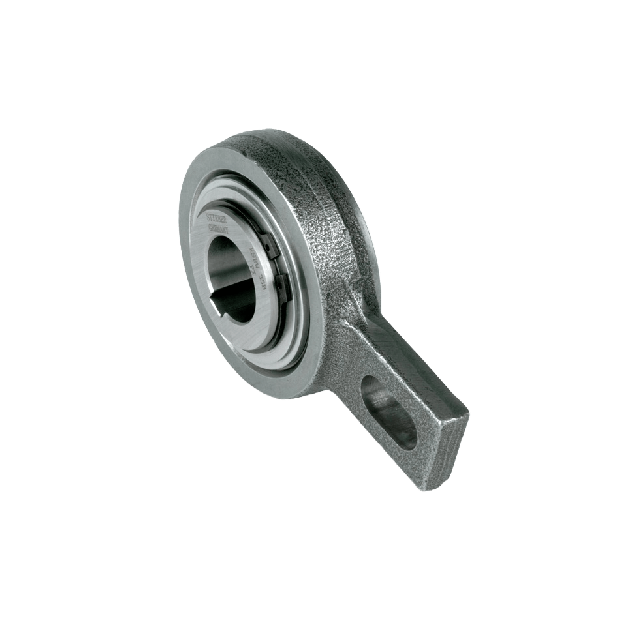

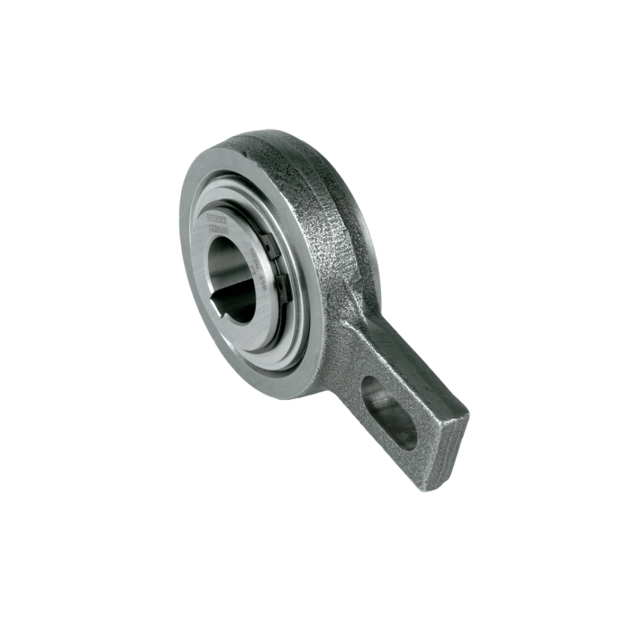

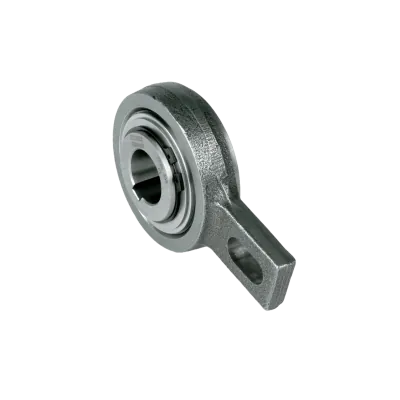

calcPageSize())" />Stieber freewheel RSBW 70 steel
HV73100630The RSBW self contained freewheel is a high-quality DC sprag type freewheel designed to meet your specific needs. With a range of features, this freewheel offers performance and reliability.
Specifications
Product description
Downloads
€959.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
Overrunning speed imax (RPM)
250
Boltholes
1
Producer
Stieber
Max. torque (Nm)
2550
Shaft size (mm)
Ø70
HS-Code
84836080.000000
Description

Key features:
- Self contained: The freewheel comes fully self-contained, eliminating the need for additional components and simplifying installation.
- Plain bearings: Equipped with precision plain bearings, it maintains stability and operates efficiently at low rotational speeds.
- Shield protected O rings: The freewheel is sealed using shield protected O Rings, enhancing its durability and protecting it from external elements.
- Versatile installation: It arrives grease lubricated and is suitable for both horizontal and vertical installation, providing flexibility for various applications.
- High torque capacity: Primarily designed as a backstop, the RSBW freewheel offers impressive torque capacity, ensuring reliable and efficient performance even under heavy loads.
- Space-efficient: With a compact design, this freewheel minimizes the space requirement, making it ideal for installations with limited room.
- Robust construction: The rugged design enables the freewheel to withstand challenging environments, including high humidity or water splash areas.
