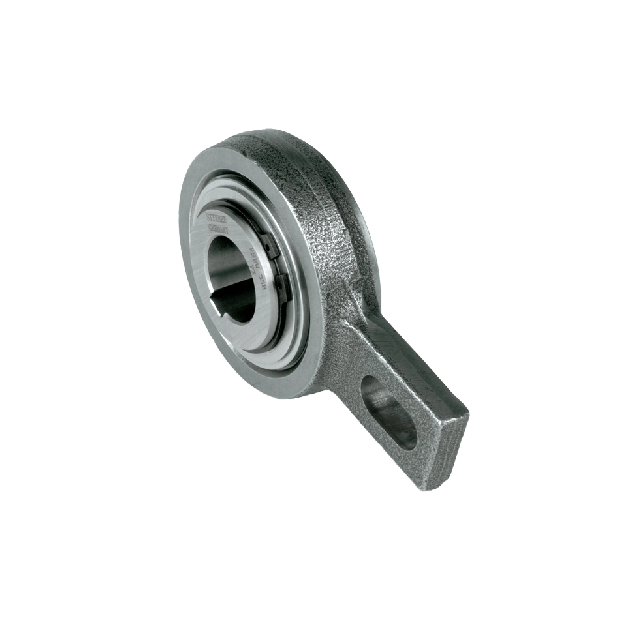

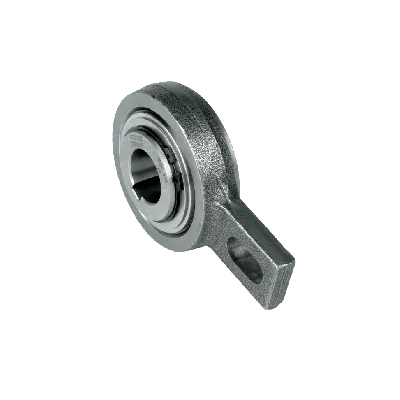

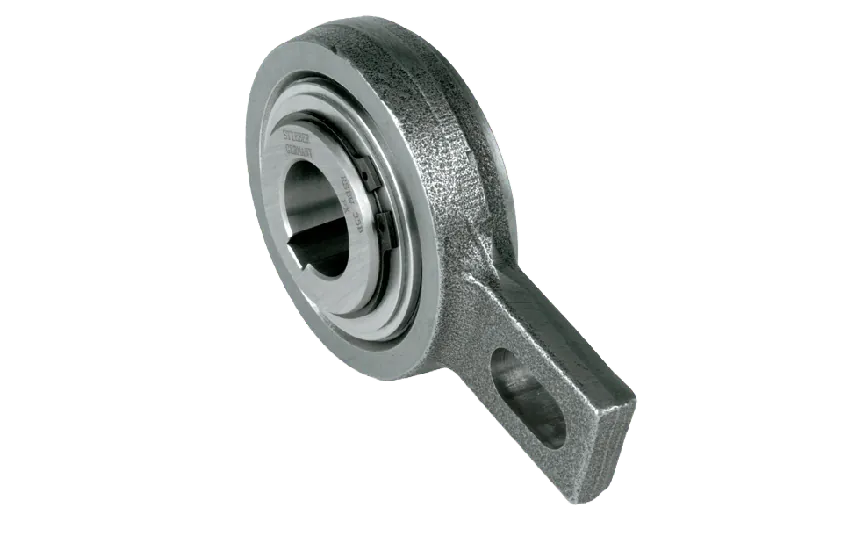

Stieber freewheel RSBW 40mm
HV73100580The RSBW freewheel size 40mm from Steiber, is a solution for high torque capacity and minimal space requirements. This DC sprag type freewheel is designed to provide reliable performance even in challenging environments, making it the ideal choice for a wide range of applications.
Specifications
Product description
Downloads
€612.91
Made to order
Expected shipment: 06-01-2025
More Information
Type
RSBW
Overrunning speed imax (RPM)
300
Boltholes
1
Producer
Stieber
Max. torque (Nm)
1295
Shaft size (mm)
Ø40
Description
Key features:
- Self-contained design for hassle-free installation
- Centered by plain bearings for smooth and efficient operation at low rotational speeds
- Sealed with shield protected O Rings to ensure durability and longevity
- Grease lubricated and ready for immediate installation in either horizontal or vertical positions
- Perfectly suited for use as a backstop, providing excellent torque capacity
- Occupies minimal space, optimizing your equipment's overall footprint
- Capable of functioning seamlessly in difficult conditions, including high humidity or water splash areas
