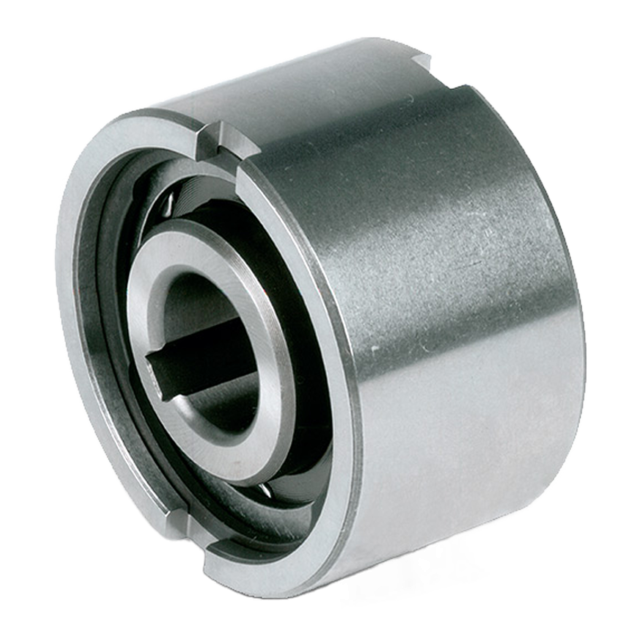

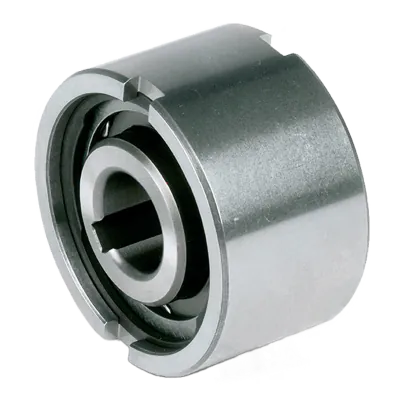

The Stieber NF 12mm is a compact roller-type freewheel without bearing support, designed for use with external bearings and oil lubrication. Its compact design allows integration with standard ball bearing housings, making it ideal for high-speed indexing, overrunning, or backstop applications in confined mechanical systems.

With a shaft diameter of Ø12 mm, the NF 12mm freewheel supports overrunning speeds up to 5000 RPM (imax) and application speeds up to 6000 RPM (amax), while transmitting up to 20 Nm of torque. The inner race is keyed to the shaft, ensuring secure torque transmission. The outer race has a positive n6 press-fit tolerance for installation into H7 housings and features additional side notches to engage torque—these may be omitted when using a rigid K6 tolerance housing.

The outer diameter conforms to standard ball bearing dimensions, allowing co-location with bearing components in space-optimized assemblies.

Key Features:

• Ø12 mm shaft interface

• Roller-type freewheel, non-bearing supported

• Max torque: 20 Nm

• Overrunning speed: imax 5000 RPM, amax 6000 RPM

• Keyed inner race, press-fit outer race (n6)

• Optional side notches for torque transfer

• Compatible with 63-series bearing outer diameters

Specifications:

• Type: NF

• Shaft diameter: Ø12 mm

• Max overrunning speed (imax): 5000 RPM

• Max application speed (amax): 6000 RPM

• Max torque: 20 Nm

• Inner race: Keyed

• Outer race: n6 press-fit tolerance with notches

• Material: Steel

• Bearing support: External required

• Lubrication/Sealing: To be provided externally (standard: oil)
