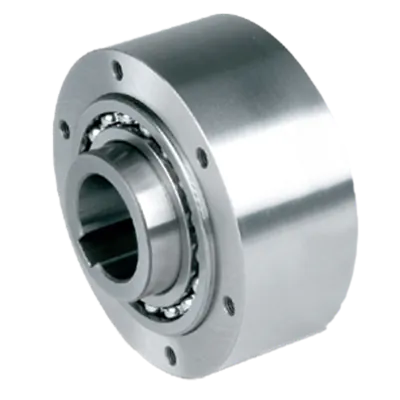

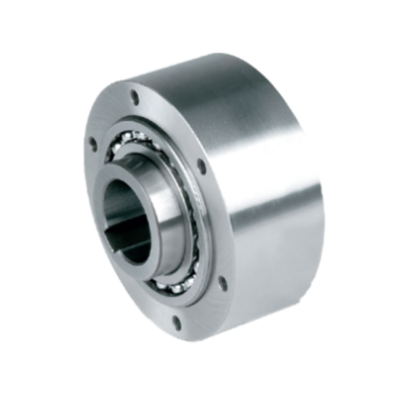

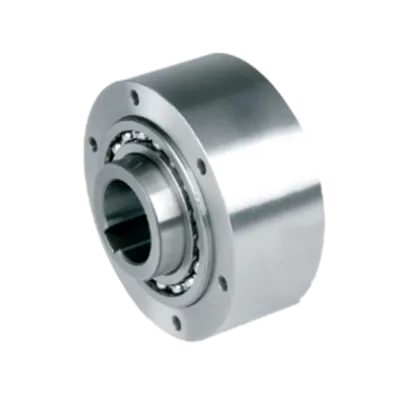

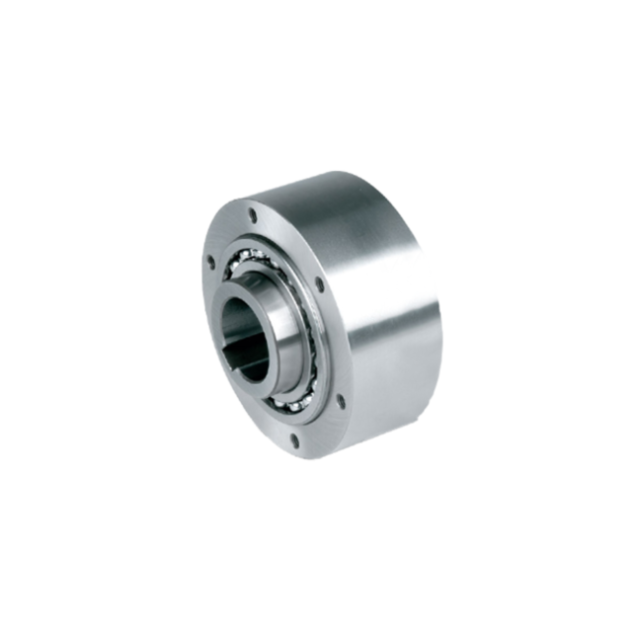

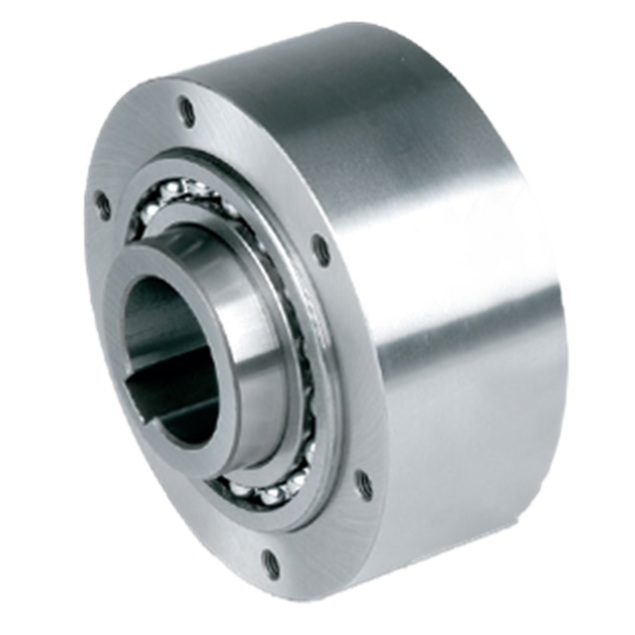

Stieber freewheel GFR 35mm, steel
HV73100760The GFR freewheel 35mm from Steiber, is a robust and reliable self contained freewheel. As a key component of the Stieber modular system, this freewheel is built for efficiency and durability.
Specifications
Product description
Downloads
€871.31
Made to order
Expected shipment: 07-02-2025
More Information
Type
GFR
Overrunning speed imax (RPM)
1550
Boltholes
6
Overrunning speed amax (RPM)
3800
Producer
Stieber
Max. torque (Nm)
725
Shaft size (mm)
Ø35
Description
Key features:
- Bearing support: The freewheel is supported by two high-quality 160.. series bearings, ensuring smooth and efficient operation.
- Oil lubrication: The GFR Freewheel requires oil lubrication, guaranteeing optimal performance and minimizing wear and tear on crucial components.
- Versatility: These freewheels can be seamlessly integrated into designs that provide oil lubrication and proper sealing, offering flexibility for various engineering applications.
- Axial stress prevention: It is crucial to note that the bearings in the GFR Freewheel must not be subjected to axial stress, ensuring their longevity and preventing potential damage.
