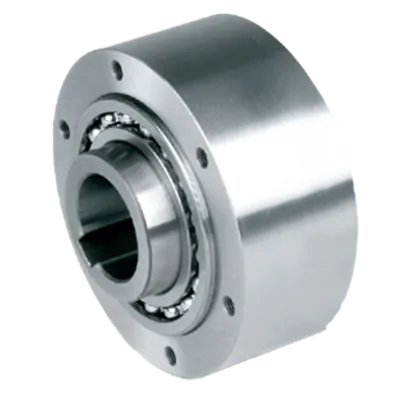

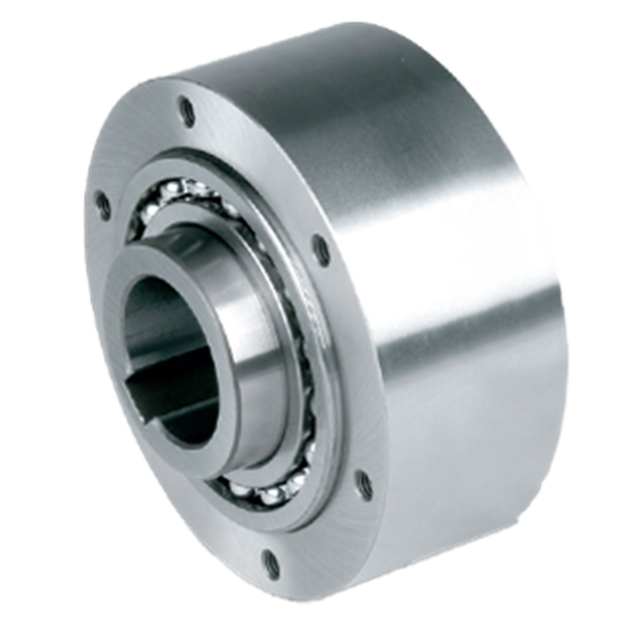

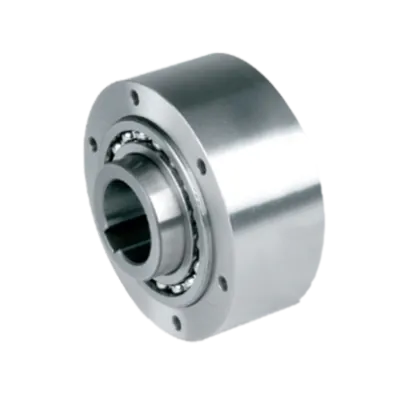

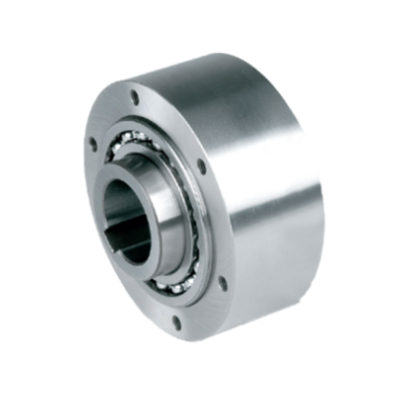

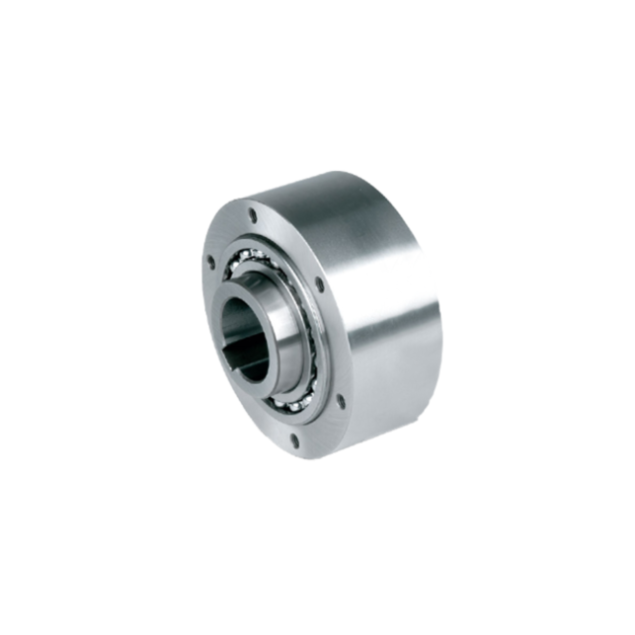

The Stieber GFR Ø130 mm freewheel is a steel-constructed roller-type clutch designed for high-torque transmission in industrial drive systems. It supports up to 250 rpm on the inner race and 1250 rpm on the outer race while providing a maximum torque capacity of 31,250 Nm. The 12 bolt holes allow for secure mounting in heavy-duty applications.

Technical Specifications:

• Shaft diameter: Ø130 mm

• Overrunning speed (imax): 250 rpm

• Max outer race speed (amax): 1250 rpm

• Max torque: 31,250 Nm

• Bolt holes: 12

• Material: Steel

• Freewheel type: Roller-based clutch

• Function: Backstop, overrunning, indexing

Application Benefits:

• High torque handling with compact integration

• Optimized for heavy-load machinery

• Compatible with bolted plate mounting designs

• Designed for long service life in high-cycle operations
