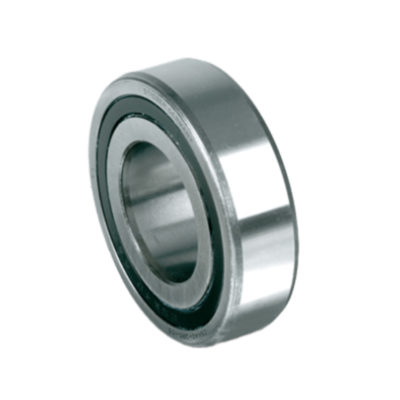

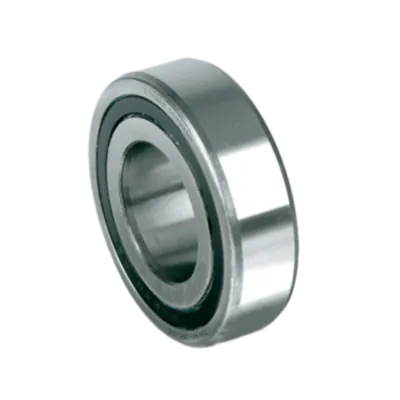

Stieber freewheel CSK 17 steel

HV73100300

The Stieber freewheel CSK 17 is a sprag-type freewheel clutch integrated into a 62-series ball bearing design. Compact and reliable, it is designed for overrunning, indexing, and backstop applications in machinery where precision and durability are essential.

This model provides a maximum torque of 30 Nm with a low drag torque of 1.1 Ncm. It is bearing supported, grease lubricated, and protected against dust particles larger than 0.3 mm, ensuring dependable performance and long service life.

All CSK models use formchromed sprags, significantly extending overrunning lifetime. Torque transmission is achieved via press-fit assembly into a rigid steel housing (N6 tolerance) and onto a shaft with n6 tolerance. For operating temperatures above +50°C, additional Nylos-type seals are recommended, and the CSK design also allows for oil bath lubrication where required.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

Drag torque ([Ncm])

1.1

Producer

Stieber

Max. torque (Nm)

Shaft size (mm)

Ø17

HS-Code

84836080.000000

Description

Key features:

Integrated design: The CSK size 17 is a sprag type freewheel seamlessly integrated into a 62 series ball bearing, ensuring a compact and efficient design.
Bearing support: This freewheel is bearing supported, providing enhanced stability and load-bearing capabilities, making it ideal for heavy-duty applications.
Grease lubrication: Delivered grease lubricated, the CSK Combined Bearing Freewheel ensures smooth operation and minimal maintenance requirements, contributing to longer service life.
Dust protection: Engineered to withstand harsh environments, it is protected against dust particles of more than 0.3 mm, safeguarding the internal components and ensuring consistent performance.
Temperature resistance: For high-temperature operating conditions exceeding 50°C, additional "nylos" type seals are recommended to ensure optimal functionality and longevity.
Versatile lubrication options: The CSK freewheel also supports oil bath lubrication, giving users flexibility in choosing the most suitable lubrication method for their specific application.
