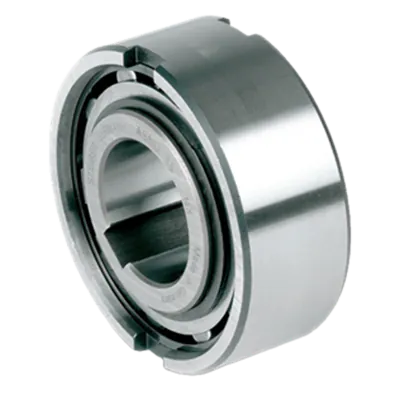

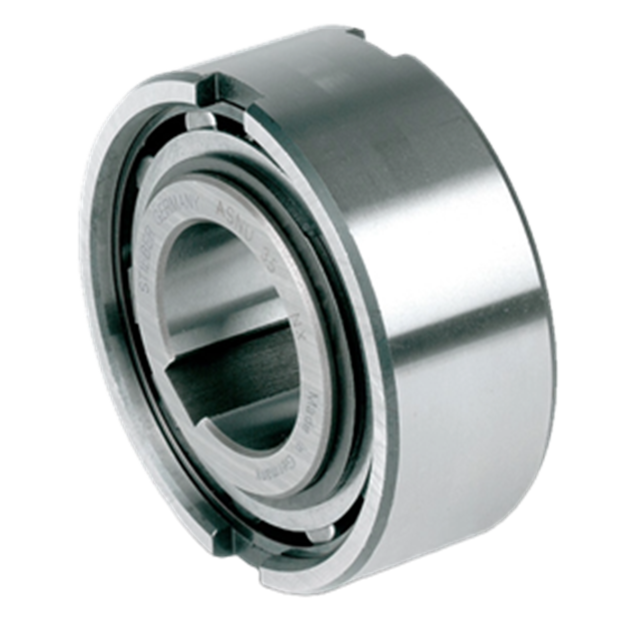

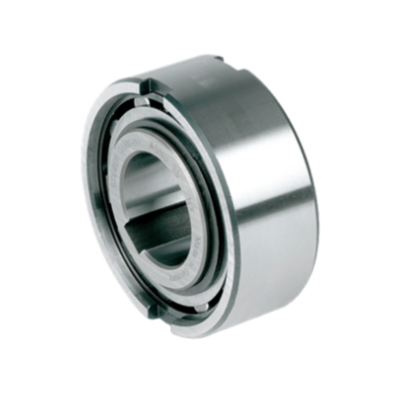

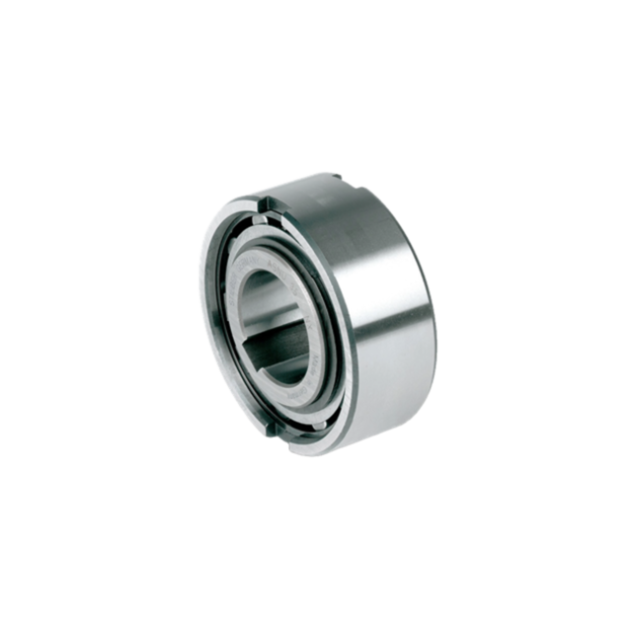

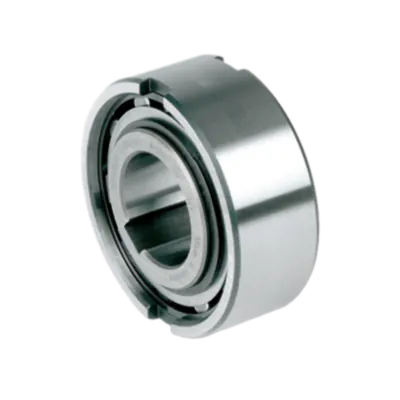

The Stieber ASNU 80mm is a roller-type freewheel without bearing support. Designed for integration with external bearings and sealing systems, it allows flexibility in positioning and load handling. With a nominal shaft diameter of Ø80 mm, this model supports overrunning speeds up to 550 RPM (imax) and 850 RPM (amax), delivering a maximum torque capacity of 3275 Nm and a drag torque of 180 Nm.

The inner race is keyed to the shaft for secure torque transmission. The outer race features an n6 press-fit tolerance designed to seat into H7 housings. For housing tolerances of K6, side notches on the outer race can be omitted, provided the housing maintains structural rigidity to prevent expansion during operation. This type supports axial misalignment between inner and outer race up to ± S/2, and its outer diameter aligns with 63-series ball bearings, enabling co-location in compact assemblies.

This modular freewheel is particularly suited for indexing, backstopping, or overrunning applications in demanding mechanical systems.

Key Features:

• Ø80 mm shaft interface

• Roller-type freewheel without bearing support

• Keyed inner race, press-fit outer race (n6 in H7)

• Max torque: 3275 Nm, drag torque: 180 Nm

• Overrunning speed: imax 550 RPM, amax 850 RPM

• ± S/2 axial misalignment tolerance

• Outer diameter matches 63-series ball bearings

Specifications:

• Type: ASNU

• Shaft diameter: Ø80 mm

• Max overrunning speed (imax): 550 RPM

• Max application speed (amax): 850 RPM

• Max torque: 3275 Nm

• Drag torque: 180 Nm

• Inner race: Keyed

• Outer race: Press-fit (n6) with notches

• Material: Steel

• Bearing support: Not included (external required)

• Lubrication/Sealing: Must be externally provided
