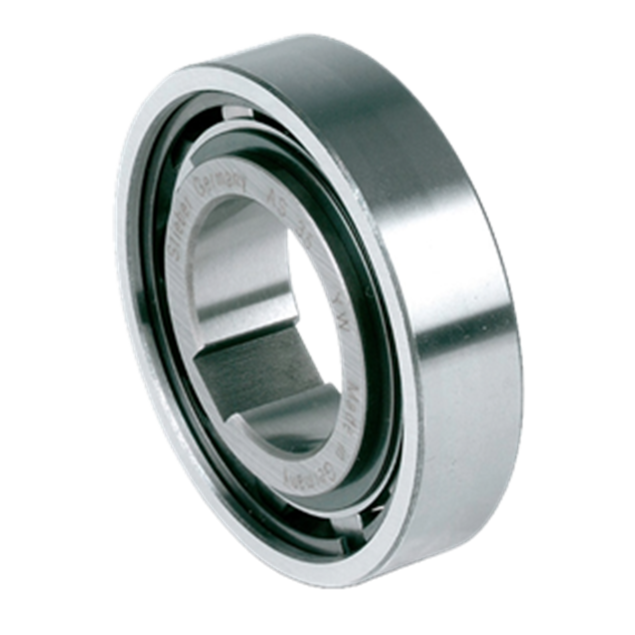

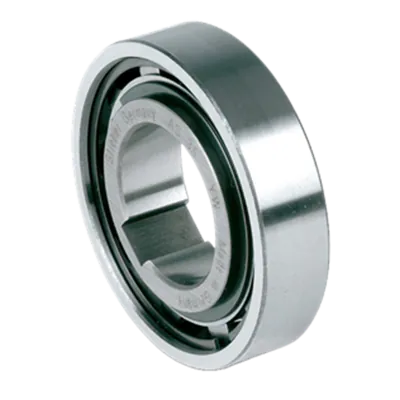

Stieber freewheel AS 80 steel
HV73100274The Stieber AS 80 is a precision-engineered roller-type freewheel, designed to deliver reliable overrunning, indexing, or backstopping performance in industrial drive systems. Manufactured from high-quality steel, this model provides exceptional mechanical strength and long operational life, even under demanding cyclic loads.
With a maximum torque capacity of 1063 Nm, it ensures secure torque transmission in heavy-duty applications. The freewheel supports overrunning speeds up to 600 RPM (imax) and can momentarily handle speeds up to 900 RPM (amax), making it suitable for dynamic systems requiring precise overrunning or backstop functionality.
Featuring a drag torque of just 58 Ncm, it minimizes energy losses and mechanical wear during idle running, contributing to overall system efficiency. As a product from Stieber, a recognized specialist in overrunning and backstop solutions, the AS 80 ensures high performance, durability, and integration flexibility in complex mechanical assemblies.
Made to order
Expected shipment:
More Information
Description
The Stieber AS Ø80 mm freewheel is a non-bearing-supported, roller-type freewheel designed for integration in applications requiring custom bearing arrangements. It is suitable for shafts with a diameter of Ø80 mm and supports a maximum torque of 1063 Nm. The inner race allows for speeds up to 600 rpm, and the outer race can reach 900 rpm.
This model is part of the AS series, which features compact dimensions aligned with standard 62-series ball bearings. As it does not include internal bearing support, the axial and radial loads must be managed externally. Sealing and lubrication are also to be provided by the system, with oil lubrication recommended. The inner race is keyed to the shaft (except for 6 mm variants), and the outer race has an R6 tolerance for a press fit into a H7 housing. The housing must remain structurally rigid after installation.
The design permits axial misalignment between the inner and outer races of up to ±S/2, offering greater flexibility during installation.
Key Specifications:
-
Shaft diameter: Ø80 mm
-
Inner race max speed (imax): 600 rpm
-
Outer race max speed (amax): 900 rpm
-
Max torque: 1063 Nm
-
Drag torque: 58 Nm
-
Type: Roller-type freewheel
-
Bearing support: External only
-
Lubrication: Oil (external)
-
Sealing: External
-
Tolerances: Inner keyed, outer R6 press fit into H7 housing
-
Axial misalignment capacity: ±S/2
