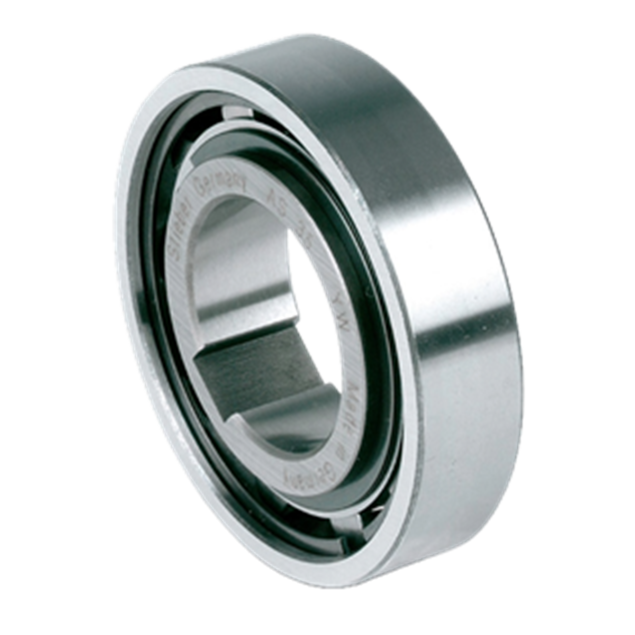

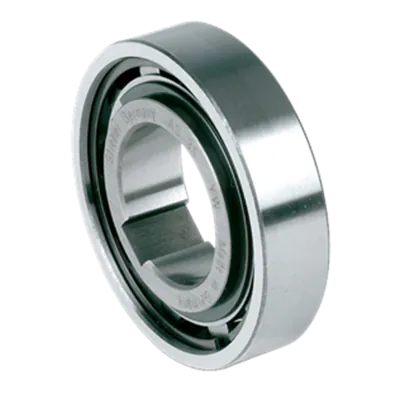

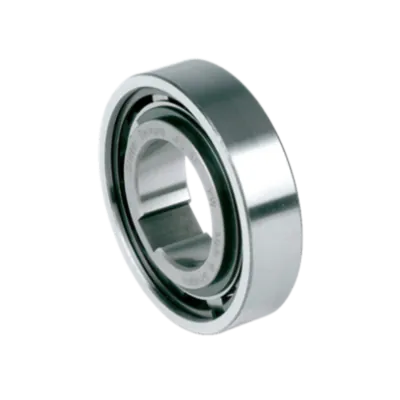

The Stieber AS 50mm freewheel is a compact, roller-type, non-bearing-supported design engineered for Ø50 mm shafts. It accommodates clutch overrunning speeds of up to 950 rpm on the inner race and 1500 rpm on the outer race, delivering a maximum torque of 230 Nm with a drag torque of 13 Nm.

With outer dimensions equivalent to 62-series ball bearings, it is well suited for integration into standardized systems. The inner race is keyed to the shaft, while the outer race must be press-fitted using R6 tolerance into a rigid H7 housing, which must maintain structural integrity post-assembly.

This unit requires external oil lubrication and external sealing, and it must be installed with separate bearing support for radial and axial loads. It allows axial misalignment of ±S/2 between races, providing installation flexibility for overrunning, indexing, or backstop applications.

Key Specifications:

• Shaft diameter: Ø50 mm

• Overrunning speed (imax): 950 rpm (inner race)

• Overrunning speed (amax): 1500 rpm (outer race)

• Maximum torque: 230 Nm

• Drag torque: 13 Nm

• Bearing support: External

• Lubrication: External (oil recommended)

• Sealing: External

• Inner race: Keyed

• Outer race: Press fit (R6 into H7 housing)

• Axial misalignment tolerance: ±S/2

• Material: Steel

• Application: Overrunning, indexing, backstop
