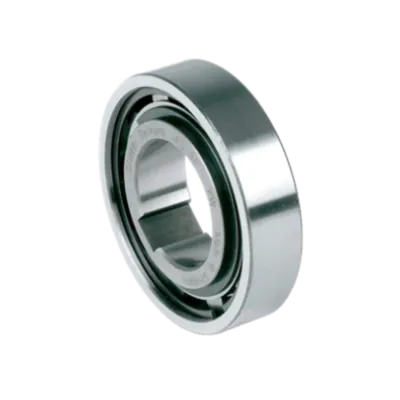

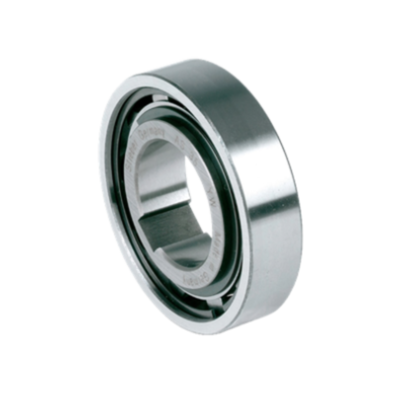

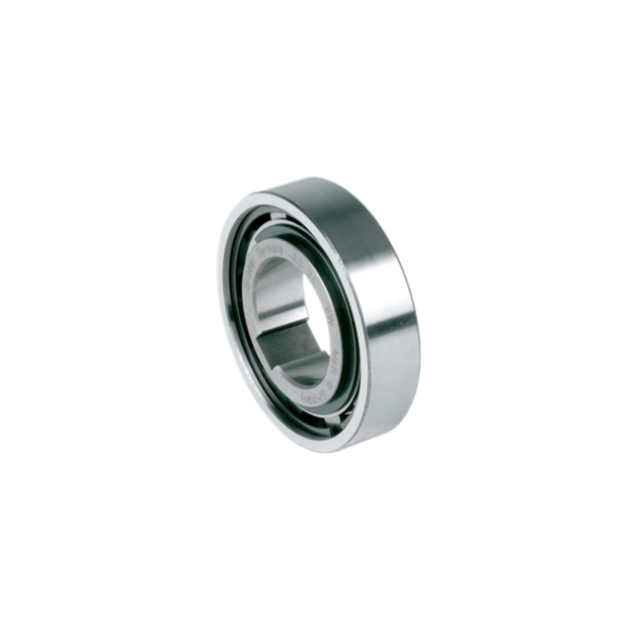

Stieber freewheel AS 10mm, steel
HV73100200The AS size 10 built-in freewheel from Steiber, a robust and reliable roller type freewheel designed to deliver performance in various industrial applications. Engineered with precision and durability in mind, this freewheel ensures smooth and efficient operation while providing the necessary support for axial and radial loads. With Steiber's reputation for quality and craftsmanship, you can trust this product to deliver results.
Specifications
Product description
Downloads
€154.02
Made to order
Expected shipment: 19-11-2024
More Information
Type
AS
Overrunning speed imax (RPM)
3500
Drag torque (Ncm)
0.36
Overrunning speed amax (RPM)
5200
Producer
Stieber
Max. torque (Nm)
6.8
Shaft size (mm)
Ø10
Description
Key features:
- Roller type freewheel: Offers superior performance and longevity, ideal for demanding industrial environments.
- Non-bearing supported: Designed for compatibility with external bearings to efficiently support axial and radial loads.
- Keyed inner race: Ensures a secure and reliable connection to the shaft, minimizing any potential slippage.
- Positive R6 tolerance outer race: Allows for a precise and tight press fit in a H7 housing, guaranteeing stability and alignment.
- Strong outer housing: Constructed to withstand assembly forces without expansion, ensuring long-term integrity and performance.
