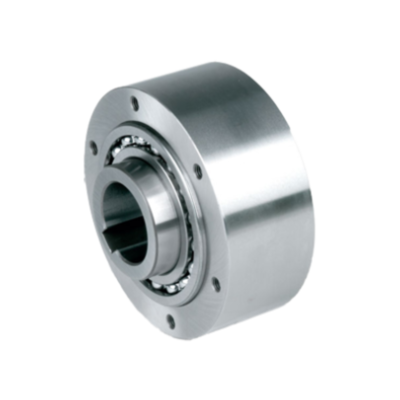

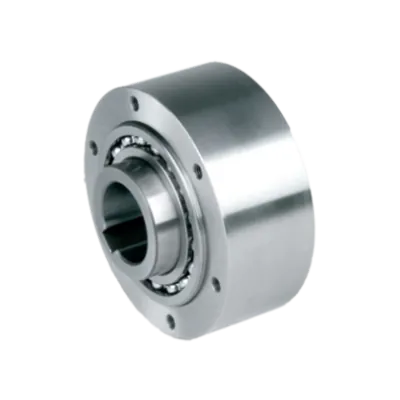

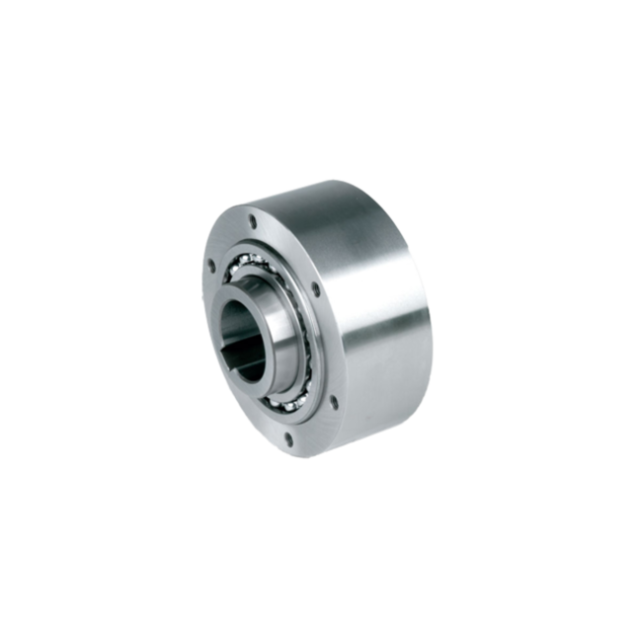

Stieber freewheel AL 70 steel and brass
HV73101411Compact one-way clutch by Stieber with Ø70 mm shaft, 10 bolt holes, imax 550 rpm, amax 2150 rpm, and 5,750 Nm torque. For dynamic backstop and overrunning applications.
Made to order
Expected shipment:
More Information
Description
The Stieber AL Ø70 mm freewheel is a compact one-way clutch developed for high-speed, light-to-medium torque applications. Constructed from hardened steel and brass, it provides smooth overrunning and directional locking in demanding environments.
Technical Attributes:
-
Shaft diameter: Ø70 mm
-
Maximum torque: 5,750 Nm
-
Drag torque: 320 Nm
-
Clutch overrunning speed (imax): 550 rpm
-
Outer race overrunning speed (amax): 2150 rpm
-
Bolt holes: 10
-
Materials: Steel and brass
Key Benefits:
-
Ideal for backstop, overrunning, and indexing in compact systems
-
High overrunning speeds for dynamic and fast-moving operations
-
10-bolt design ensures secure and vibration-stable installation
-
Low drag torque minimizes mechanical resistance
-
Applicable in conveyor drives, gear assemblies, and automation units
