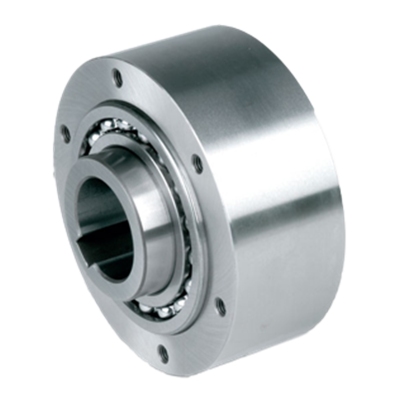

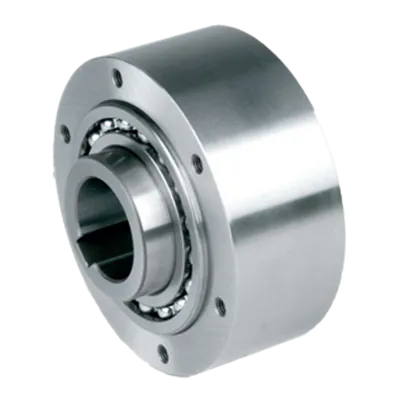

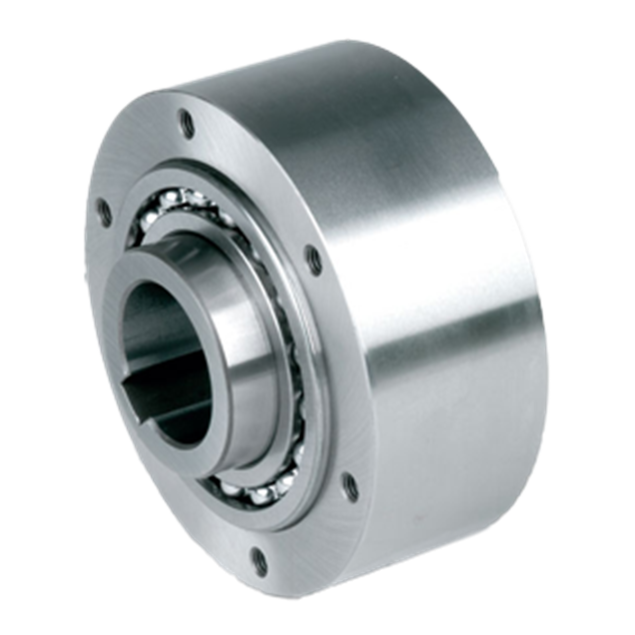

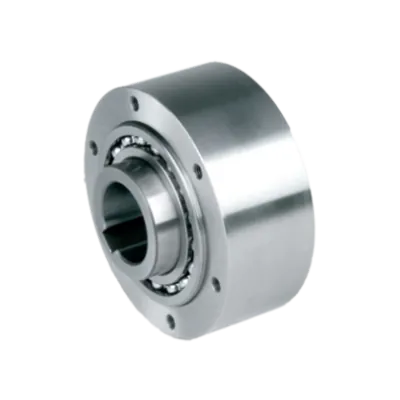

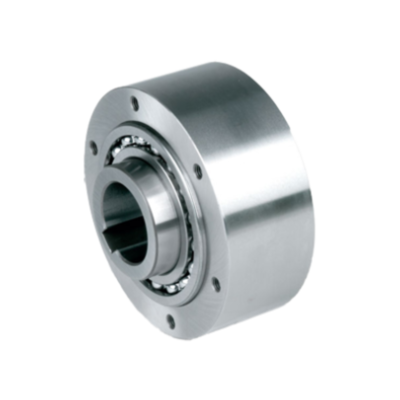

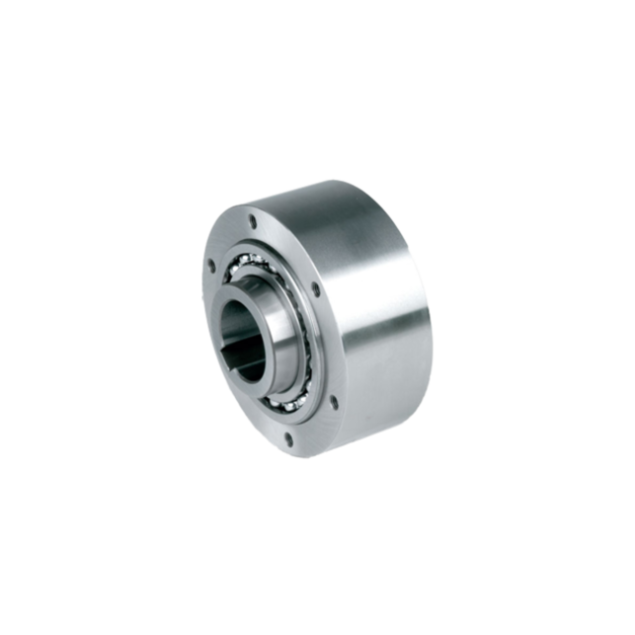

The Stieber AL Ø55 mm freewheel is a compact, high-speed one-way clutch designed for light-to-medium torque loads. Manufactured from steel and brass, it ensures reliable directional control with minimal drag resistance.

Technical Attributes:

• Shaft diameter: Ø55 mm

• Maximum torque: 2,625 Nm

• Drag torque: 190 Ncm

• Overrunning speed (imax): 750 rpm

• Outer race speed (amax): 2650 rpm

• Bolt holes: 8

• Materials: Hardened steel and brass

Key Benefits:

• Engineered for overrunning, indexing, and backstop use

• Supports high-speed operations in compact assemblies

• 8-bolt pattern for stable, reliable mounting

• Low drag torque minimizes energy losses

• Perfect for automation, conveyors, and small gear systems
