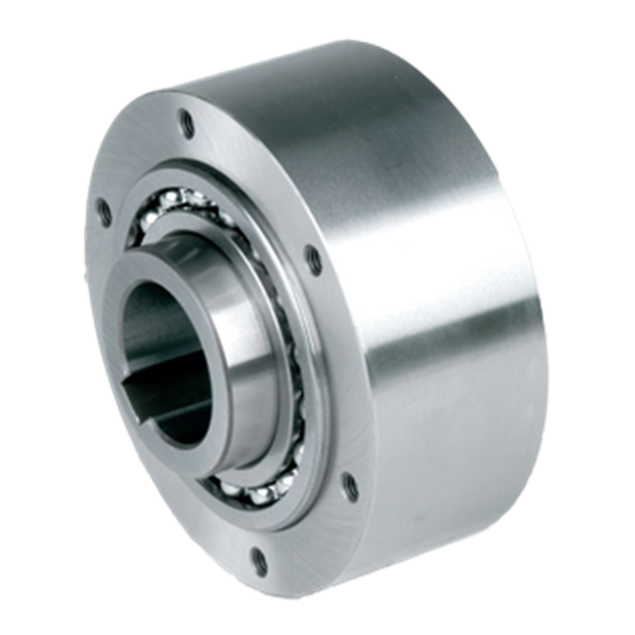

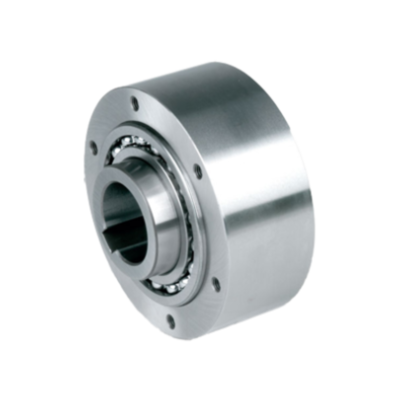

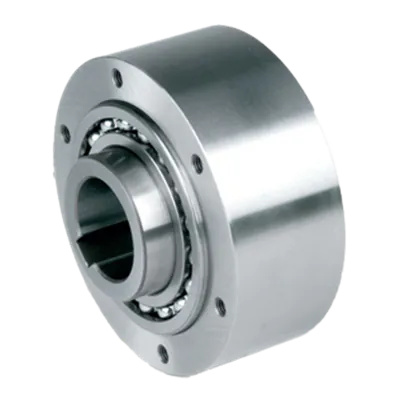

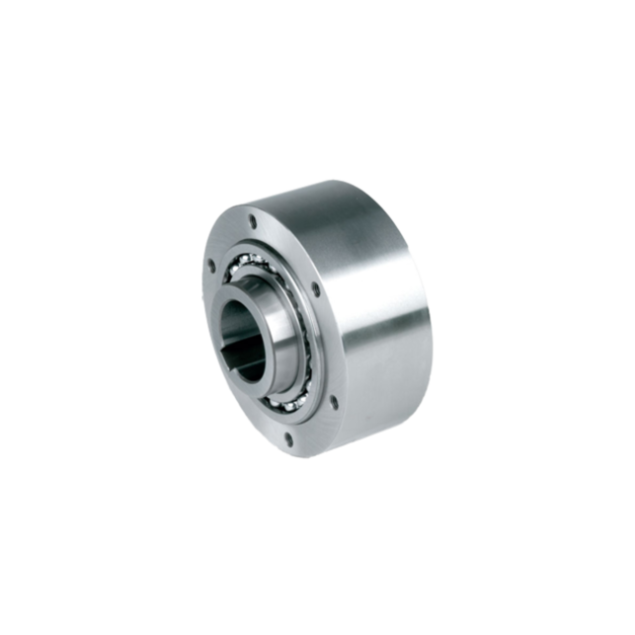

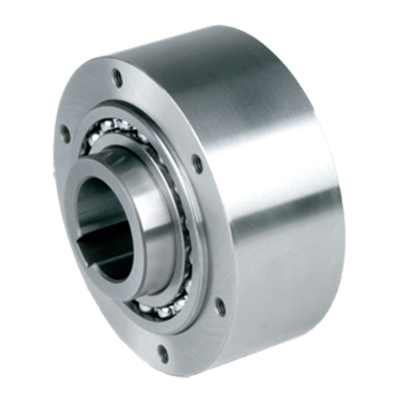

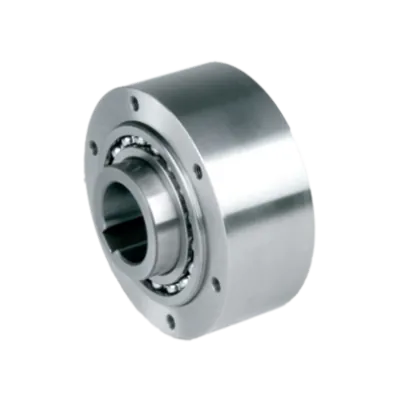

The Stieber AL Ø50 mm freewheel is a precision one-way clutch designed for high-speed, low-to-moderate torque applications. Made from hardened steel and brass, it ensures stable operation with minimal resistance in compact systems.

Technical Attributes:

• Shaft diameter: Ø50 mm

• Maximum torque: 2,125 Nm

• Drag torque: 180 Ncm

• Overrunning speed (imax): 800 rpm

• Outer race speed (amax): 2800 rpm

• Bolt holes: 8

• Materials: Steel and brass

Key Benefits:

• Suitable for backstop, overrunning, and indexing use

• Supports very high operational speeds in compact layouts

• 8-bolt design ensures stable and secure installation

• Low drag torque for high efficiency during idle rotation

• Integrates well into gear units, conveyors, and automation modules
