Stieber freewheel AL 40mm, steel and brass

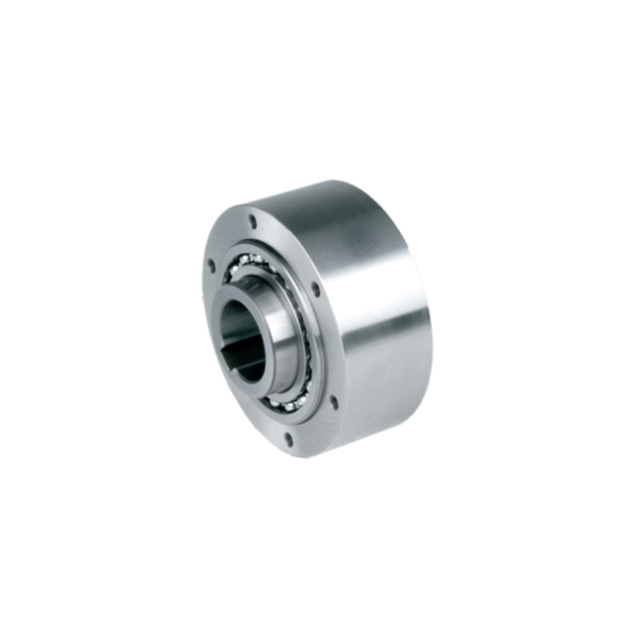

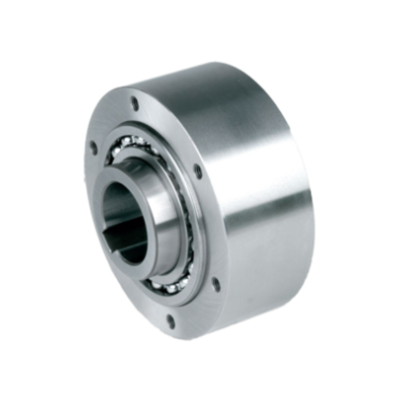

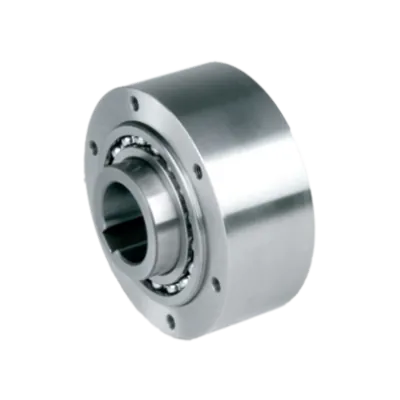

HV73101395The Steiber AL self contained freewheel size 40mm is a high-quality, roller type freewheel designed to provide efficient and reliable power transmission in various applications. Built as part of the Stieber modular system, this freewheel offers performance and versatility.
Specifications
Product description
Downloads
€1,035.92
Made to order
Expected shipment: 07-02-2025
More Information
Type
AL
Overrunning speed imax (RPM)
1150
Drag torque (Ncm)
72
Boltholes
6
Overrunning speed amax (RPM)
3400
Producer
Stieber
Max. torque (Nm)
1025
Shaft size (mm)
Ø40
Description
Key features:
- Roller type: The AL Freewheel utilizes a roller type design, ensuring smooth and efficient power transmission, minimizing energy loss during operation.
- Bearing supported: Equipped with two 160.. series bearings, the freewheel offers enhanced support and load-bearing capacity, contributing to its durability and longevity.
- Oil lubrication: The freewheel requires oil lubrication, which helps reduce friction, heat generation, and wear, resulting in extended service life and optimal performance.
- Modular system: Being part of the Stieber modular system, the AL Freewheel Size 40mm seamlessly integrates with other components, enabling easy customization and adaptability to specific requirements.
- Versatile application: These freewheels find use in various designs that provide oil lubrication and sealing, making them suitable for a wide range of industrial and mechanical applications.
