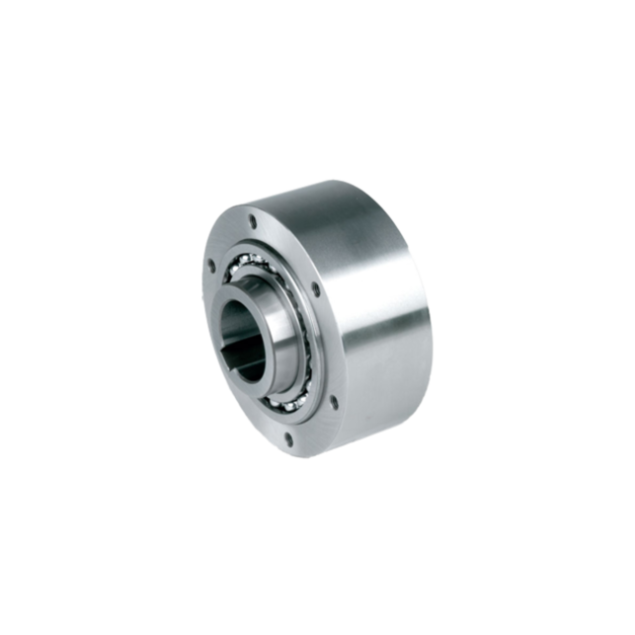

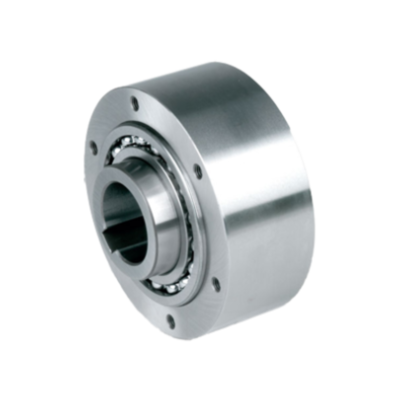

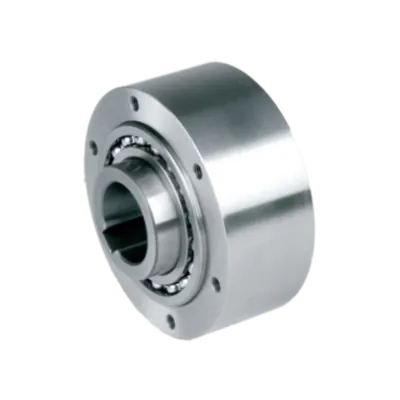

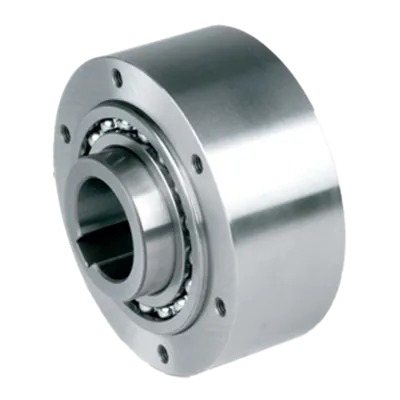

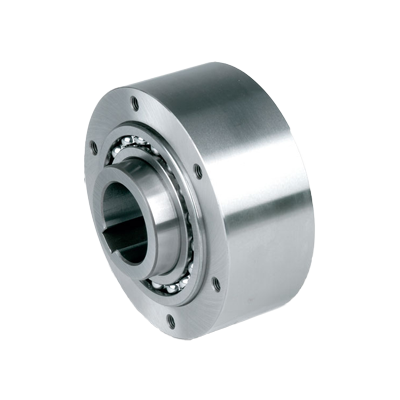

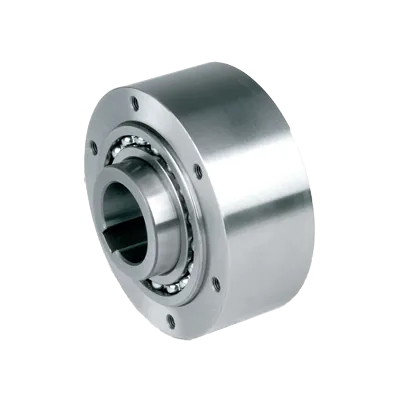

Stieber freewheel AL 35 steel and brass
HV73101390The Stieber freewheel AL 35 is a roller-type freewheel designed for robust and reliable power transmission. Constructed from steel and brass, it delivers durability and wear resistance for demanding industrial environments.
This model provides a maximum torque capacity of 725 Nm and supports overrunning speeds up to 1550 RPM (inner race) and 3800 RPM (outer race). It is bearing supported with two 160.. series bearings and requires oil lubrication, ensuring stable performance and extended service life.
The AL 35 is designed for use with standard Stieber covers, which transmit torque and provide lubrication and sealing. Torque is transmitted by bolts through the cover plate, with the outer race machined plain to receive components with H7 tolerance.
Made to order
Expected shipment:
More Information
Description
Key features:
- Roller type freewheel: Built with precision and durability, the roller type design ensures smooth and reliable power transmission.
- Bearing supported: The AL freewheel utilizes two 160.. series bearings, providing enhanced load-bearing capacity and increased operational stability.
- Oil lubrication: Engineered to excel in environments requiring oil lubrication, ensuring optimal performance and reduced wear over time.
- Sealing compatibility: This freewheel seamlessly integrates into designs with sealing systems, offering enhanced protection against contaminants and maintaining performance in challenging conditions.
- Versatile applications: Suitable for a wide range of engineering applications, from industrial machinery to automotive systems, where freewheeling functionality is crucial.
