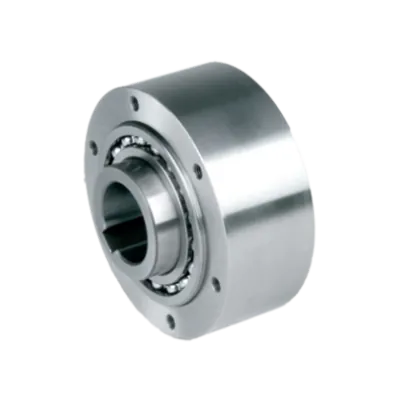

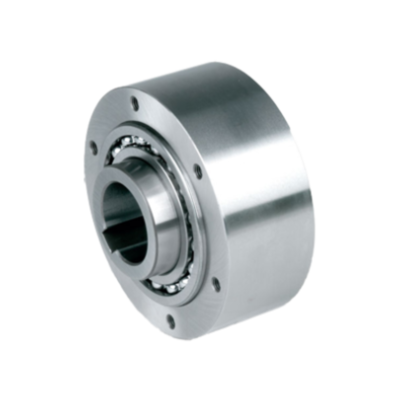

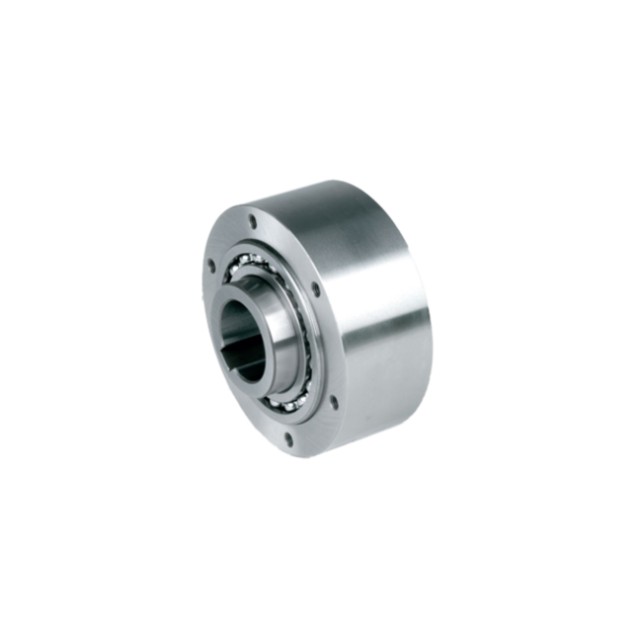

Stieber freewheel AL 30mm, steel and brass
HV73101389The AL self contained freewheel size 30mm from Steiber, is a roller type freewheel that promises performance and seamless integration into your mechanical systems. Built with precision engineering and backed by the Stieber modular system, this freewheel is designed to elevate your operations and ensure reliability.
Specifications
Product description
Downloads
€664.48
Made to order
Expected shipment: 07-02-2025
More Information
Type
AL
Overrunning speed imax (RPM)
1700
Drag torque (Ncm)
23
Boltholes
6
Overrunning speed amax (RPM)
4100
Producer
Stieber
Max. torque (Nm)
500
Shaft size (mm)
Ø30
Description
Key features:
- Roller type: The AL freewheel boasts a roller type mechanism, providing smoother operation and reduced friction, leading to enhanced efficiency and longevity of the unit.
- Bearing supported: Equipped with two 160.. series bearings, this freewheel ensures optimal load distribution and improved load-carrying capacity, ensuring stability during high-demand applications.
- Oil lubrication: The AL freewheel requires oil lubrication, allowing for better heat dissipation, reduced wear, and consistent performance even in challenging environments.
- Versatile applications: Suitable for designs with oil lubrication and sealing, the AL freewheel adapts to a wide range of applications, making it a versatile choice for various industrial setups.
