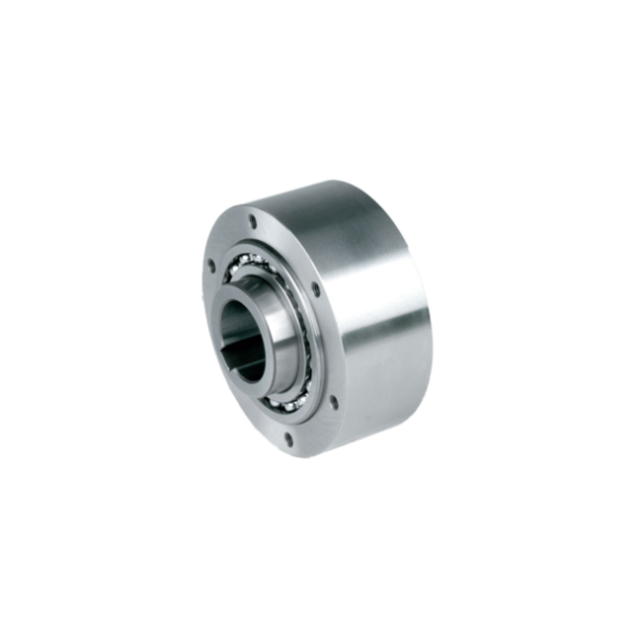

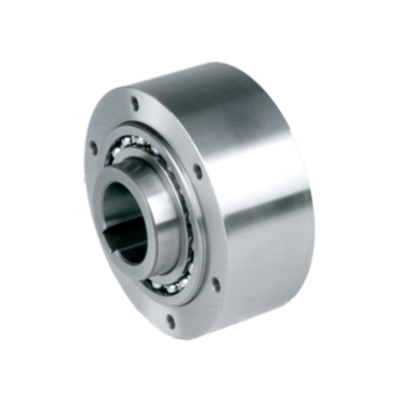

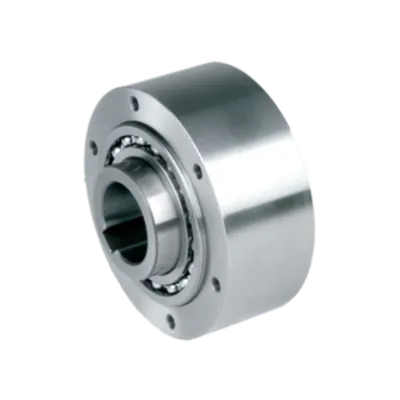

Stieber freewheel AL 100 steel and brass
HV73101414Compact one-way clutch by Stieber with Ø100 mm shaft, 10 bolt holes, imax 350 rpm, amax 1450 rpm, and max torque of 20,000 Nm. Ideal for indexing and backstop functions.
Made to order
Expected shipment:
More Information
Description
The Stieber AL Ø100 mm freewheel is a high-performance one-way clutch for industrial applications requiring reliable torque transmission and precise control. Constructed from steel and brass, this model offers efficient power transfer and long service life.
Technical Attributes:
-
Shaft diameter: Ø100 mm
-
Maximum torque: 20,000 Nm
-
Drag torque: 830 Nm
-
Overrunning speed (imax): 350 rpm
-
Outer race speed (amax): 1450 rpm
-
Bolt holes: 10
-
Materials: Hardened steel and brass
Key Benefits:
-
Designed for indexing, overrunning, and backstop operations
-
10-bolt design ensures secure and balanced mounting
-
High overrunning and outer race speeds suitable for fast-moving systems
-
Low drag torque reduces energy loss during freewheeling
-
Suitable for conveyor drives, gear units, and mechanical safety systems
