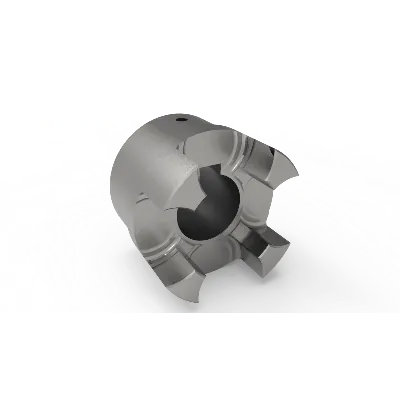

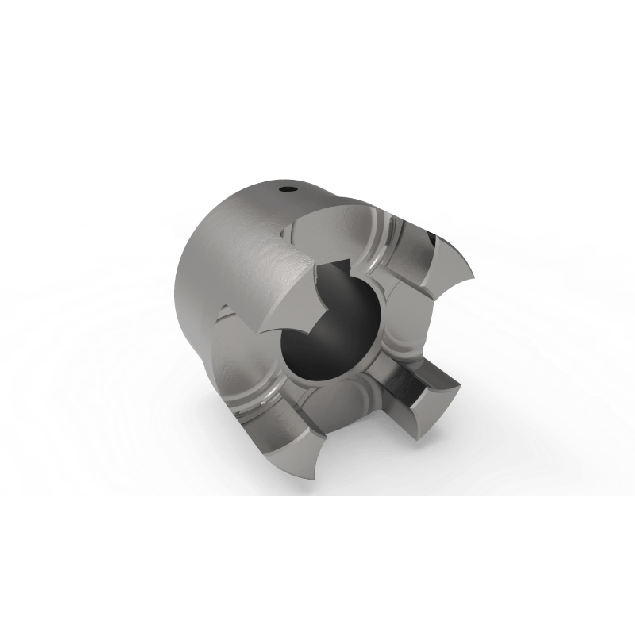

SPIDEX claw coupling hub A24/32, cast iron
HV71005470The SPIDEX claw clutch hub A, size 24/32, made with focus on robustness and performance for your coupling needs. Crafted from durable cast iron, this product ensures longevity and reliability in your applications.
Specifications
Product description
Downloads
€20.24
In stock
Expected shipment: 04-11-2024
More Information
Hub type
A
Material
Cast iron
Length (mm)
78
Max. moment (Nm)
70
Coupling size
24/32
Bore max.
Ø24mm H7
Bore min.
Ø10mm H7
Description
Key features:
- Cast iron: Constructed from cast iron, providing durability and strength for demanding industrial environments.
- Modular design: This product number includes Hub A, forming an integral part of the SPIDEX claw coupling system. Each component, including hub A, hub B, and the spider, is available for separate purchase.
- Versatile integration: Seamlessly compatible with both hub A and hub B, allowing flexibility in coupling configurations for your specific requirements.
- Easy installation: Characterized by lateral mounting, the claw coupling offers effortless installation and removal, saving you time and effort during maintenance.
- High clamping pressure: Boasting a press-fit mechanism and superior clamping pressure, ensuring a secure and reliable connection in critical applications.
- Maintenance-free: Designed for hassle-free operation, the coupling requires no maintenance, reducing downtime and costs.
- Temperature resilience: Operates flawlessly in a wide temperature range from -40 °C to +100 °C, withstanding short temperature spikes up to +120 °C.
