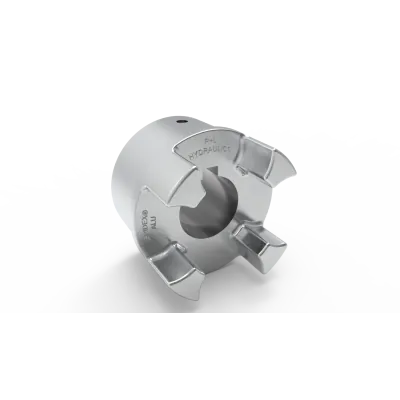

SPIDEX claw coupling hub A 24/32, aluminium
HV71004960The SPIDEX claw coupling hub A 24/32 from R+L HYDRAULICS is a precisely engineered Hub A component, designed for reliable torque transmission in compact drive systems. Manufactured from die-cast aluminium, it offers excellent strength-to-weight ratio, reducing overall system mass while maintaining rigidity.
With a coupling size of 24/32, this hub is rated for up to 70 Nm of torque, making it ideal for pumps, small gearboxes, and light machinery applications. It accommodates bores from Ø8 mm H7 up to Ø24 mm H7, providing flexibility for various shaft sizes. Its 78 mm length ensures proper engagement with elastomer elements, minimizing vibration and compensating for minor misalignments.
As a Hub A, it is designed specifically to connect with a corresponding Hub B, which you can conveniently find under the accessories tab below, forming a complete, vibration-damping coupling set within the proven SPIDEX system.
Made to order
Expected shipment:
Accessories
More Information
Description
Key features:
- Aluminum build: Constructed from aluminum, ensuring durability and longevity.
- Modular design: This product number includes hub A, forming an integral part of the complete claw coupling setup, consisting of two hubs and a spider.
- Compatibility: Seamlessly integrates with both hub A and B, offering versatility and ease of use.
- Easy installation and removal: Characterized by lateral mounting and press-fit mechanism, making installation and removal hassle-free.
- Clamping pressure: Boasts high clamping pressure for a secure connection, ensuring efficient power transmission.
- Maintenance-free: Designed to be maintenance-free, saving you time and effort in the long run.
- Wide temperature range: Operates flawlessly in temperatures ranging from -40 °C to +100 °C, with short temperature spikes up to +120 °C permissible.
- Reliable performance: Provides a reliable coupling solution, suitable for various applications and industries.
