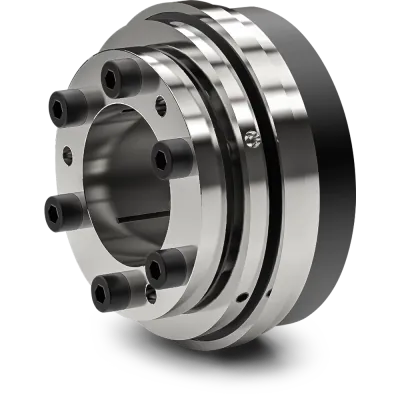

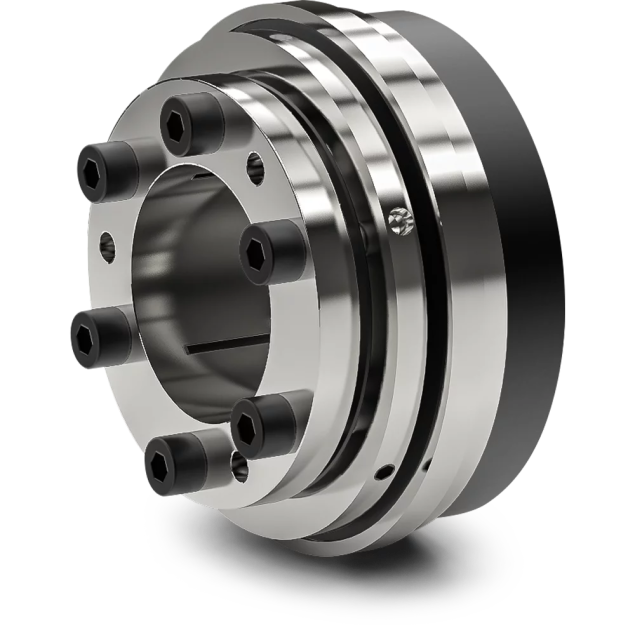

R+W SK1 150 D torque limiter, adjustment range: 45-150Nm, hardened steel and steel
HV3020111516The SK1 size 15 torque limiter with conical clamping bushing and six screws is a reliable and high-performance torque limiter designed to provide optimal safety and protection in various industrial applications. With its features and durable construction, this torque limiter offers unmatched performance and peace of mind.
Specifications
Product description
Downloads
€574.83
Made to order
Expected shipment: 28-01-2025
More Information
Material
Hardened steel and steel
Length (mm)
58
Max. moment (Nm)
150
Manufacturer
R+W
Coupling size
150
Outer diameter (mm)
Ø92
Bore D1
Ø35mm H7
Description
Key features:
- Fatigue-resistant and wear-free operation for an infinite service life
- Adjustable torque range from 45 Nm to 150 Nm, allowing for versatile applications
- Disengagement torque set at 45 Nm, ensuring precise torque control and protection
- Function system: Multi-position/automatic re-engagement (D)
Specifications:
- Operable temperature range from -30˚C to +120˚C, enabling usage in various environments
- Conforms to industry standards for quality and performance
Design and Materials:
- Safety system: hardened steel
- Conical clamping bushing: steel
- Six screws for secure and robust attachment
Bore Specifications:
- Bore Specifications: Ø35mm H7
