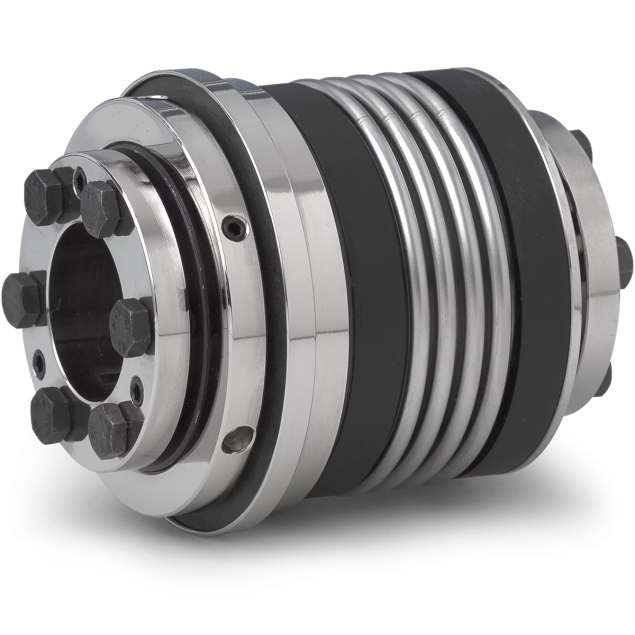

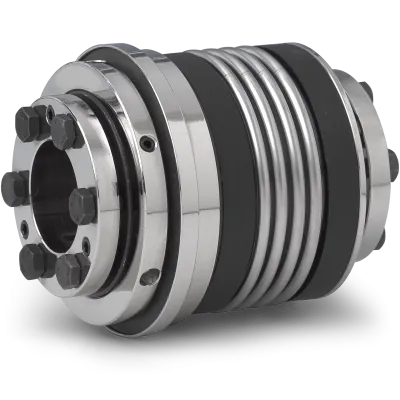

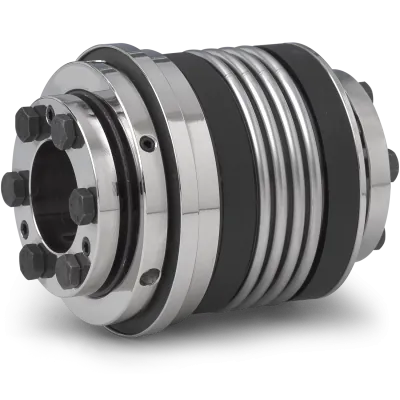

R+W SK3 60 F torque limiter, adjustment range: 30-60 Nm, stainless steel, hardened steel and steel
HV3020111511The SK2 size 60 torque limiter with clamping hub and bellows coupling is a high-performance mechanical device designed to provide precise torque control and protection in various industrial applications. With its advanced features and robust construction, this torque limiter ensures reliable and safe operation, preventing equipment damage and costly downtime.
Specifications
Product description
Downloads
€606.03
Made to order
Expected shipment: 26-02-2025
More Information
Material
Stainless steel, hardened steel and steel
Length (mm)
84
Max. moment (Nm)
60
Manufacturer
R+W
Coupling size
60
Outer diameter (mm)
Ø73
Bore D1
Ø20mm H7
Bore D2
Ø22mm H7
Description
Key features:
- Two conical clamping assemblies with six tightening screws each for secure and efficient torque transmission.
- Safety system based on a spring-loaded ball-detent principle, offering reliable disengagement and re-engagement during overload situations.
- Functional system: Full disengagement and manual re-engagement (F) for precise control over torque transmission.
- Adjustment range: Wide adjustment range from 30-60Nm, allowing customization to meet specific application requirements.
Specifications:
- Temperature range: Operating temperature range spanning from -30°C to +100°C (-22°F to +212°F)
Design and materials:
- Bellows coupling: High-grade stainless steel construction for superior durability and resistance to corrosion.
- Safety system: Hardened steel components ensure strength and reliability.
- Clamping hubs: Lightweight aluminum construction strikes a balance between durability and weight considerations.
Bore specifications:
- Bore D1: Ø20mm H7
- Bore D2: Ø22mm H7
Downloads
SK models installation and operating instructions
SK models installation and operating instructions.pdf
Download file
