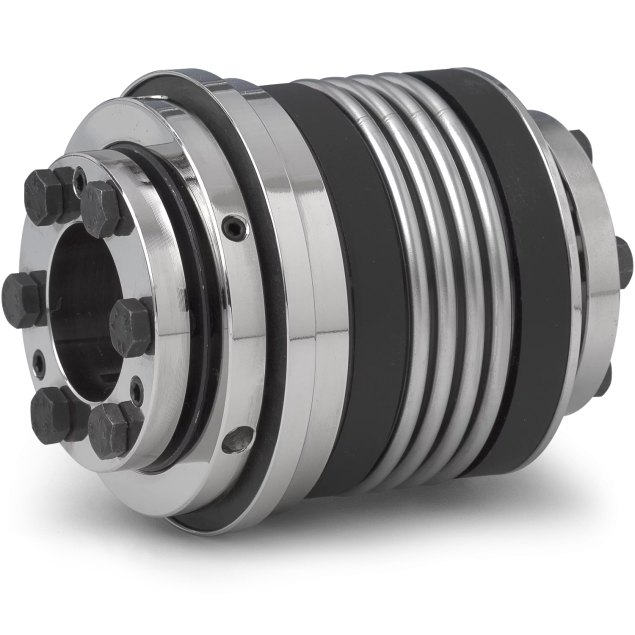

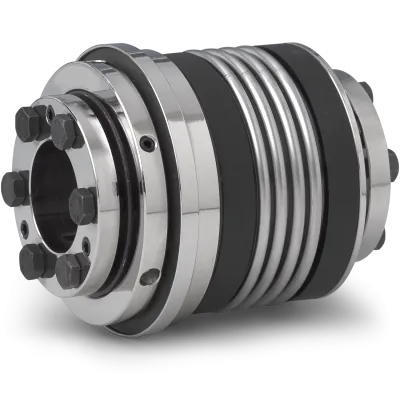

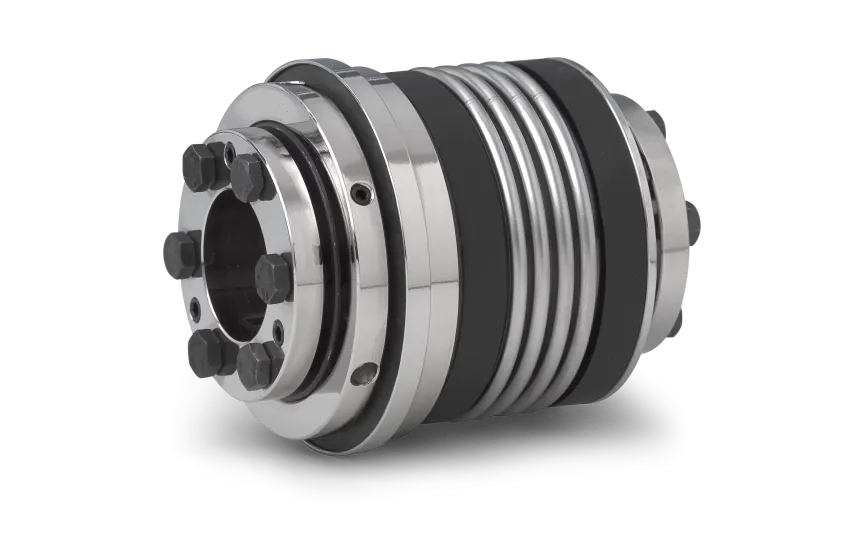

Key features:

• Two conical clamping assemblies with six tightening screws each for secure and precise connection.
• Safety system based on a spring-loaded ball-detent principle, providing effective overload protection and enhancing safety during operation.
• Functional system allows full disengagement and manual re-engagement (F).

Specifications:

• Torque adjustment range: 80-150Nm.
• Wide operable temperature range from -30°C to +100°C (-22°F to +212°F), allowing reliable performance in various environments.

Design and Materials:

• The bellows coupling is crafted from high-grade stainless steel, ensuring excellent resistance to corrosion and longevity.
• The safety system is constructed with hardened steel, providing exceptional strength and durability.
• Clamping hubs are made of stainless steel, guaranteeing robustness and reliability.

Bore specifications:

• Bore D1: Ø22mm H7
• Bore D2: Ø30mm H7
