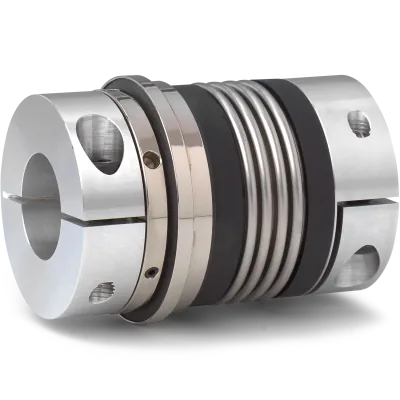

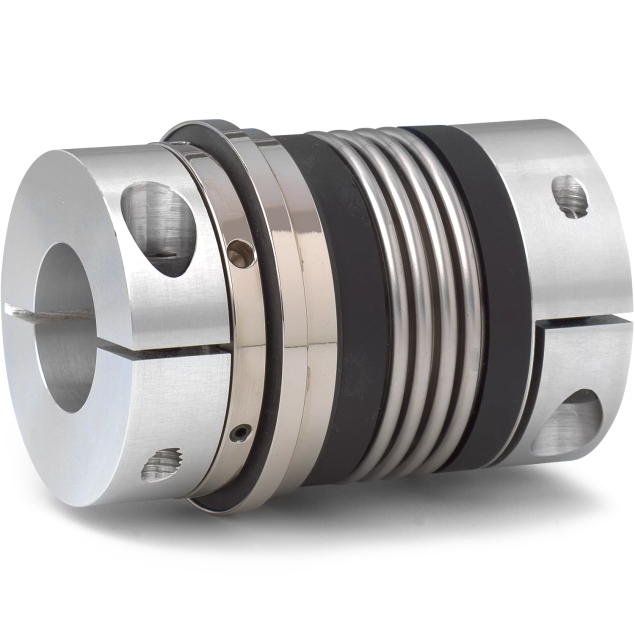

R+W SK2 30 87 F torque limiter, adjustment range: 16-30 Nm, stainless steel and aluminium
HV3020119906The SK2 size 30 torque limiter with clamping hub and bellows coupling is a robust and reliable device designed to provide precise torque control and protect your machinery from overload. With its advanced features and high-quality materials, it ensures optimal performance in demanding industrial applications.
Specifications
Product description
Downloads
€651.52
Made to order
Expected shipment: 14-01-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
87
Max. moment (Nm)
30
Manufacturer
R+W
Coupling size
16-30
Outer diameter (mm)
Ø24,1
Bore D1
Ø15mm H7
Bore D2
Ø16mm H7
Description
Key features:
- Two conical clamping assemblies with six tightening screws each ensure secure and reliable torque transmission.
- Safety system based on a spring-loaded ball-detent principle enhances operational safety and prevents unintended disengagement.
- Full disengagement and manual re-engagement functionality (F) allows for easy adjustment and maintenance.
Specifications:
- Adjustment range: 16-30 Nm
- Disengagement torque: 9 Nm
- Operable temperature range: -30° C to +100° C (-22° F to +212° F)
Design and materials:
- Bellows made of high-grade stainless steel provides excellent resistance to corrosion and ensures durability in harsh environments.
- Safety system crafted from hardened steel guarantees enhanced strength and longevity.
- Clamping hubs constructed from lightweight and durable aluminum offer a perfect balance of durability and weight optimization.
Bore specifications:
- Bore D1: Ø15mm H7
- Bore D2: Ø16mm H7
Downloads
SK models installation and operating instructions
SK models installation and operating instructions.pdf
Download file
