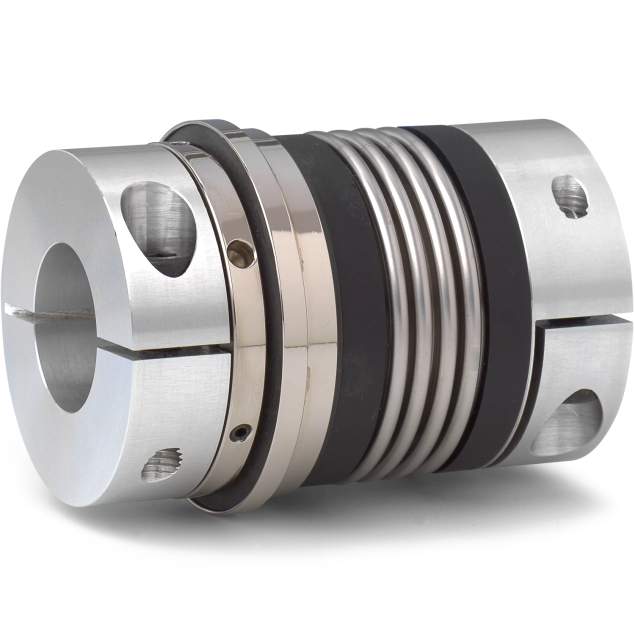

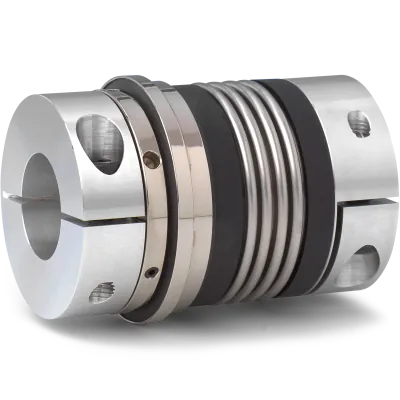

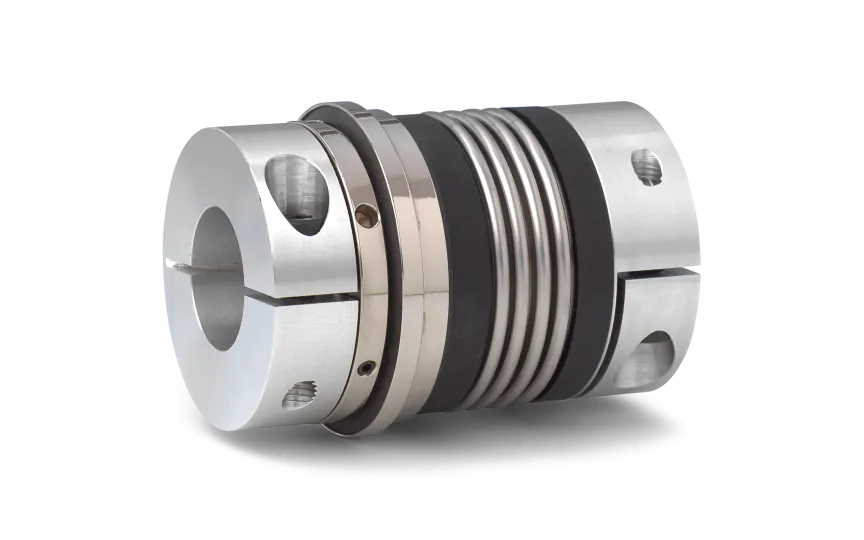

Key features:

• Two conical clamping assemblies with six tightening screws each ensure a secure and precise connection.
• The safety system operates on a spring-loaded ball-detent principle, providing a reliable and fail-safe mechanism.
• Functional system: Multi-position/automatic re-engagement (W).
• Adjustment range: 700-1200 Nm
• Disengagement torque: Set at 700 Nm

Specifications:

• Operable temperature range: -30°C to +100°C (-22°F to +212°F)

Design and materials:

• The torque limiter features a robust and compact design, allowing for easy integration into existing machinery.
• The bellows coupling is crafted from high-grade stainless steel, offering exceptional strength and resistance to corrosion.
• The safety system is constructed from hardened steel, ensuring long-lasting durability and optimal performance.
• The clamping hubs are made of sturdy steel, providing a robust connection between the torque limiter and the driven equipment.

Bore specifications:

• Bore D1: Ø70mm H7 with keyway.
• Bore D2: Ø70mm H7 with keyway.
