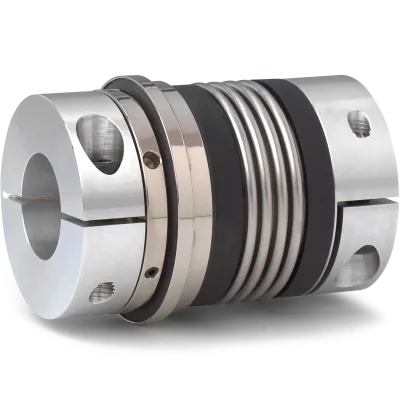

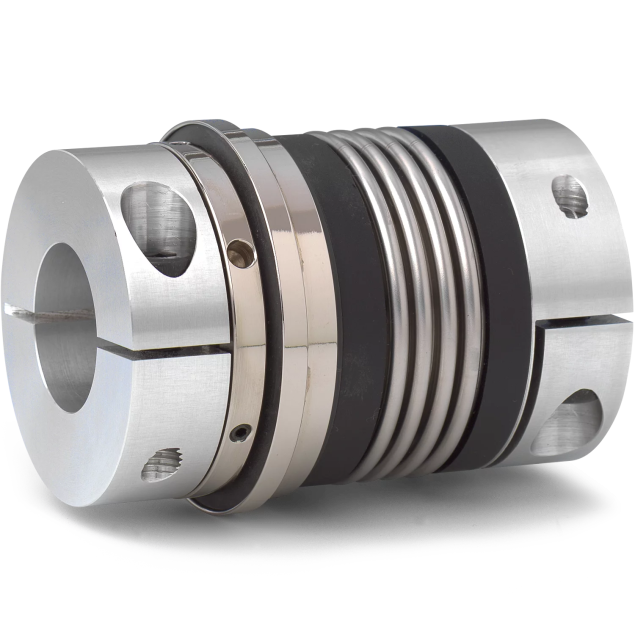

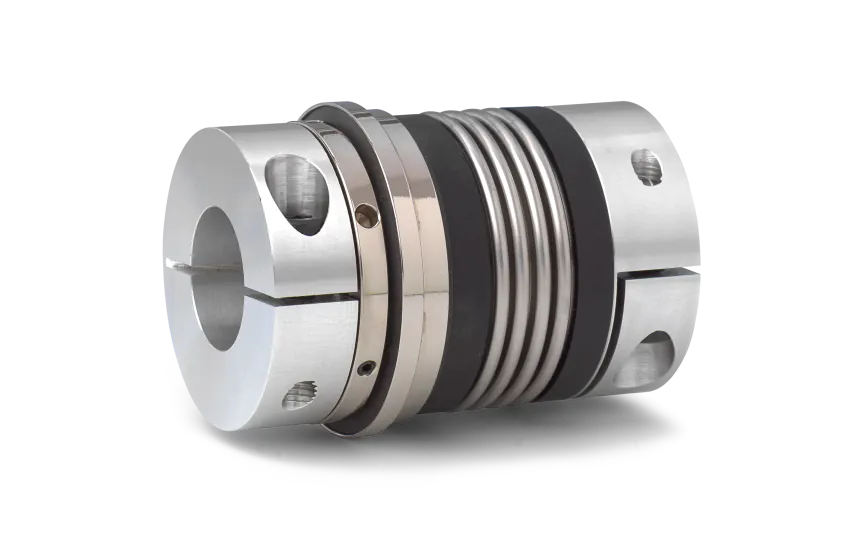

Key features:

• The safety system incorporates a spring-loaded ball-detent principle, enhancing the reliability and effectiveness of torque limiting.
• Functional system: The torque limiter features a multi-position and automatic re-engagement capability (D), ensuring seamless operation and rapid re-engagement after disengagement.
• Adjustment range: The torque limiter offers an adjustable range of 8-20 Nm, allowing for precise and customized torque settings.
• Disengagement torque: The disengagement torque is set to 9 Nm, providing a reliable and consistent disengagement point for optimal safety.

Specifications:

• Operable temperature range: The torque limiter operates efficiently in temperatures ranging from -30°C to +100°C (-22°F to +212°F), ensuring adaptability to varying environmental conditions.

Design and materials:

• Two conical clamping assemblies with six tightening screws each provide secure and precise clamping of the coupling elements.
• The bellows coupling is crafted from high-grade stainless steel, ensuring durability and resistance to corrosion for long-term usage.
• The safety system is made of hardened steel, guaranteeing exceptional strength and reliability.
• Clamping hubs are constructed from lightweight yet sturdy aluminum, providing a balance between strength and weight efficiency.

Bore specifications:

• Bore D1: Ø12mm H7
• Bore D2: Ø22mm H7
