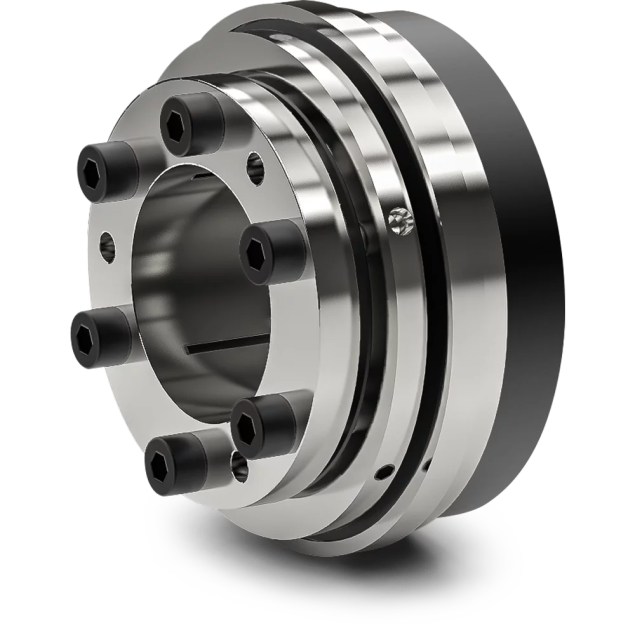

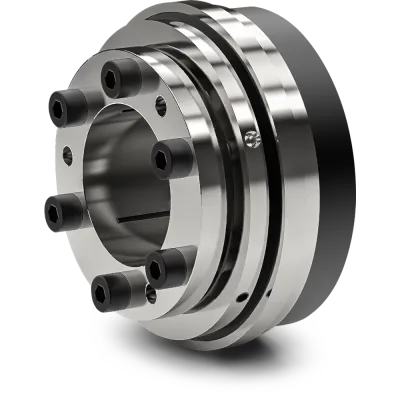

Key features:

• Fatigue resistant and wear-free design for an infinite service life, as long as technical limits are not exceeded
• Multi-position/automatic re-engagement function system (D) for flexibility and ease of use
• Adjustable torque range from 2300 to 2800 Nm to suit different application requirements
• Disengagement torque set at 2400 Nm for precise torque control

Specifications:

• Operating temperature range: -30 to +120˚C

Design and materials:

• Safety system design: Hardened steel clamping
• Clamping bushing material: Steel

Bore specifications:

• Bore D1: Ø80mm H7 with keyway DIN 6885
