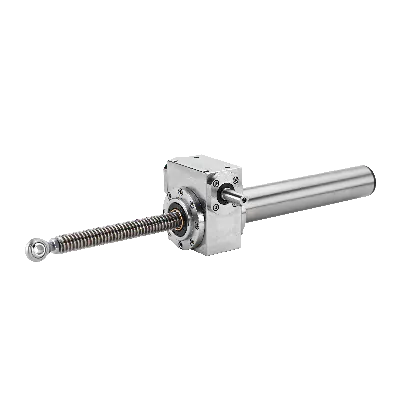

Screw jack stainless acid proof

2XX-RSS
A screw jack, specifically the stainless acid-proof type offered by BJ-Gear, is a device used for lifting or positioning heavy loads with precision. It operates by converting rotational motion into linear motion. This particular model is designed to be durable and resistant to corrosive substances, making it suitable for environments where exposure to acids and other harsh chemicals is common. The modular design of BJ-Gear's worm gear screw jacks allows for a high degree of customization, accommodating various gears, mounting options, flanges, oil types, and surface treatments. This flexibility makes them ideal for a wide range of applications, including but not limited to, lifting tables, machinery adjustment, and industrial automation systems. The stainless steel construction ensures that the screw jack can be used in industries that require high hygiene standards, such as the food and pharmaceutical sectors.
Specifications
Product description

More Information

Manufacturer
BJ-Gear
Product type
Screw jack
Gear material
Stainless steel acid proof
Possible exchanges rates
5.4:1 to 75:1
ATEX available
No
IP class
IP65
Spindle speed [mm/min]
47 to 2800
Max. load [kN]
Up to 41,2kN

Description

Screw jack stainless acid proof

Key features:

Modular Design: Offers flexibility in the choice of gear, mounting options, flanges, oil types, and surface treatments.
Customization: Capable of being optimized for specific needs, even in smaller quantities.
Axial Positioning: Allows for precise control of axial movements, which can be synchronized with other products like encoders, couplings, and connecting shafts.
Protection: Spindles can be safeguarded from contaminants using protective tubes.
Food Approved Lubricants: Suitable for applications requiring hygienic conditions.
Self-locking: The trapezoidal spindle design ensures self-locking, which can be an additional safety factor.
High Load Capacity: Ensures a tensile/compression force of up to 40,000 N and linear speed of up to 2,800 mm/min.
Variety of Spindles: Available with both trapezoidal and ball screw spindles for different applications.
Efficiency and Speed: The ball screw spindle option provides higher efficiency, speed, precision, and running time.

For more detailed information or specific inquiries, it's recommended to contact BJ-Gear directly

Downloads

Brochure: Worm gear screw jacks
Brochure: Worm gear screw jacks Download file
