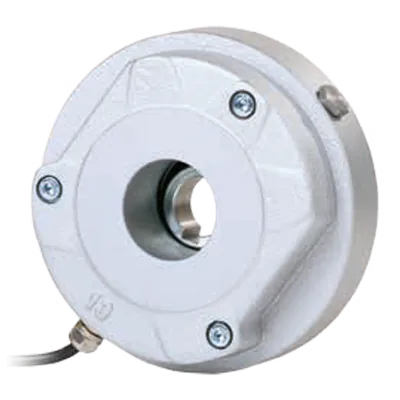

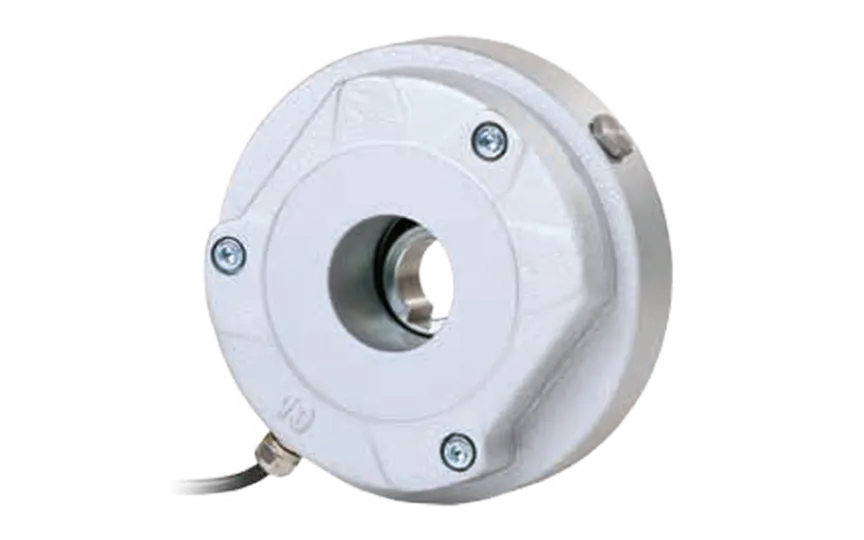

Precima FDB 13 spring-applied brake, fixed w. sealing cap, 48VDC, Ø24
HV2052113235The Precima FDB spring loaded brake size 13 with fixed braking torque is a highly dependable and robust brake designed for universal application in various drive technology scenarios. With its features and engineering, this brake ensures optimal performance and safety in a wide range of industrial and mechanical setups.
Specifications
Product description
Downloads
€205.36
Made to order
Expected shipment: 17-06-2025
More Information
IP classification
IP 54/55
Voltage (V)
48
Braking torque (Nm)
20
Brake height (mm)
53.1
Producer
Precima
BCD
112
Type designation - supplier
FDB 13 N S 20NM-48VDC-24H7
Flange code
3C
Size
13
Hub diameter
Ø24H7
Type
Robust working or holding brake
Description
Key features:
- Brake size 13: Compact and space-efficient design, suitable for integration in various equipment and systems.
- Brake voltage 48VDC: Operates efficiently with a 48VDC power supply, providing consistent and reliable braking performance.
- Brake torque 20Nm: Delivers a powerful 20Nm braking force, ensuring quick and controlled stops for enhanced safety.
- IP54/55 protection Classification: Built to withstand harsh environmental conditions, protecting against dust and water ingress.
- Sealing cap: Equipped with a sealing cap, further enhancing its durability and resistance to external elements.
Downloads
FDB Operating and Installation Instructions
FDB Operating and Installation Instructions.pdf
Download file
