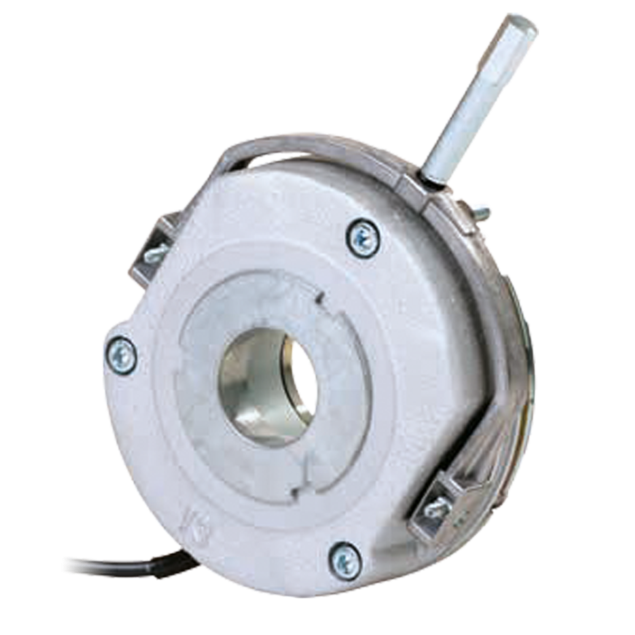

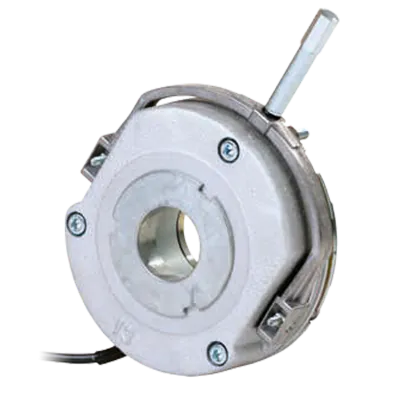

Precima FDB 13 spring-applied brake, fixed, 24VDC, Ø25H7, 1m cable
HV2052113133AThe Precima FDB 13 is a compact, trustworthy spring-applied brake providing 20 Nm of holding torque at 24 VDC, mounted on a Ø25 H7 hub. Equipped with an IP54/55-rated housing and sealing cap, it offers strong protection against dust and water spray—making it suitable for industrial automation, machine tools, conveyors, and light outdoor use.
Featuring a factory-fixed air gap, installation is simplified and adjustment-free. As a fail-safe brake, it remains engaged during power loss (spring-force activated) and releases only when energized—ideal for secure holding and emergency-stop applications.
Without power, the brake holds securely; when energized, it releases cleanly—supporting smooth operation in pick-and-place systems, robotic arms, assembly equipment, and conveyor lines.
This version comes with a 1 m cable for ready integration. Optional accessories include manual release, flange mounting, wear sensors, temperature monitoring, low-noise or corrosion-resistant versions—offering flexibility across diverse installation requirements.
Made to order
Expected shipment:
More Information
Description
Key features:
- Brake size 13: Compact and space-saving design, ideal for installations with limited space requirements.
- Brake voltage 24VDC: Efficient and low-power consumption, reducing energy costs and environmental impact.
- Brake torque 20Nm: Powerful braking force to effectively stop and hold rotating equipment with utmost precision.
- 1m cable: Convenient length for easy integration into different systems and setups.
- IP54/55 protection classification: Provides protection against dust and water ingress, ensuring extended lifespan and consistent performance even in challenging environments.
