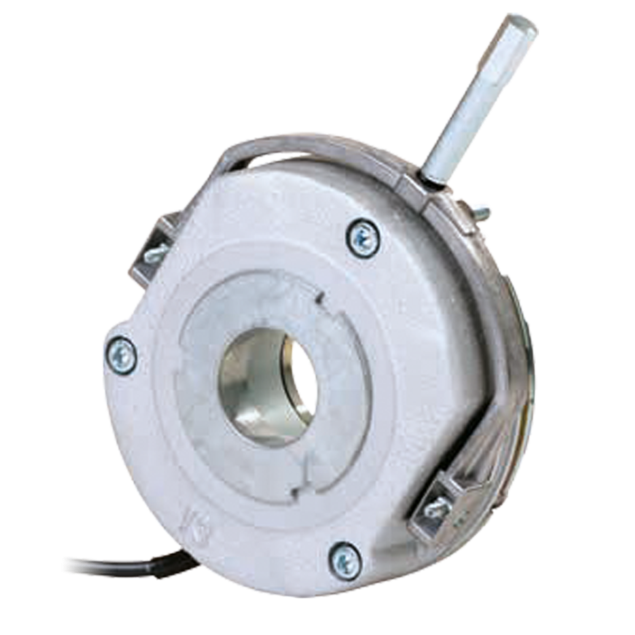

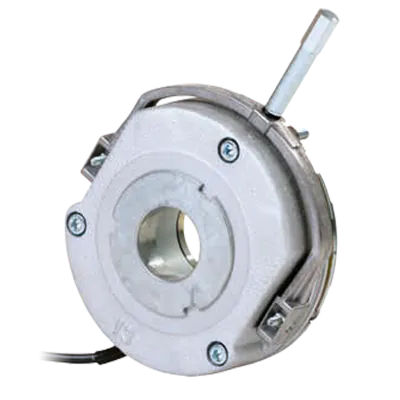

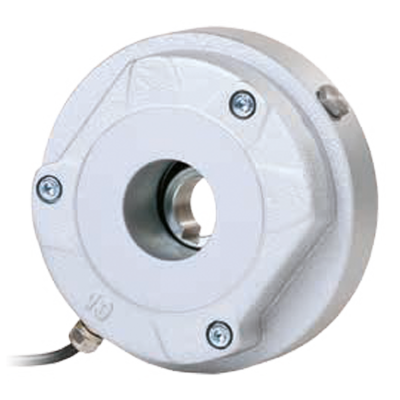

Precima FDB 13 spring-applied brake, fixed, 205VDC, 25H7Ø, 1m cable
HV2052113233AThe Precima FDB 13 is a compact and reliable spring-applied brake that delivers 20 Nm of holding torque at 205 VDC, mounted on a Ø25 H7 bore. Its IP54/55-rated housing with sealing cap provides robust protection against dust and water splashes—making it ideal for industrial automation, conveyors, robotic systems, and light outdoor applications.
With a factory-fixed air gap, the brake ensures straightforward installation with no adjustments needed. As a fail-safe unit, it engages automatically upon power loss (spring force applied), and only releases when energized—offering dependable safety in emergency-stop or secure holding scenarios.
Unpowered, it maintains firm holding; when energized, it releases cleanly—supporting smooth operation in positioning systems, pick-and-place robots, and assembly line equipment.
This variant includes a 1 m pre-attached cable for easy installation. Additional options include manual release, flange adapters, wear indicators, temperature monitoring, low-noise or corrosion-resistant finishes—providing flexible coverage for various operational requirements.
Made to order
Expected shipment:
More Information
Description
Key features:
- Brake size 13: Compact and space-efficient design, suitable for diverse machinery and equipment setups.
- Brake voltage 205VDC: Ensures consistent and reliable braking performance.
- Brake torque 20Nm: Offers a powerful and stable braking force, enhancing safety and control.
- 1m cable: Convenient cable length for flexible installation and connection.
- IP54/55 protection classification: Safeguards against dust and water ingress, ideal for challenging operating environments.
- Universal use: Suitable for a wide range of applications in drive technology, providing versatility and adaptability.
- Reliable and robust: Built to withstand demanding conditions and deliver consistent performance over extended periods.
