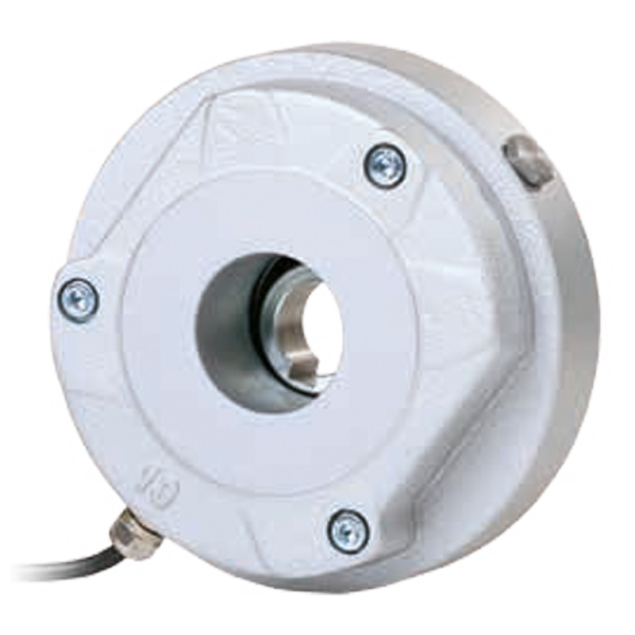

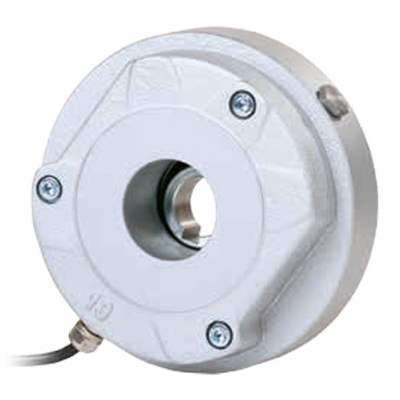

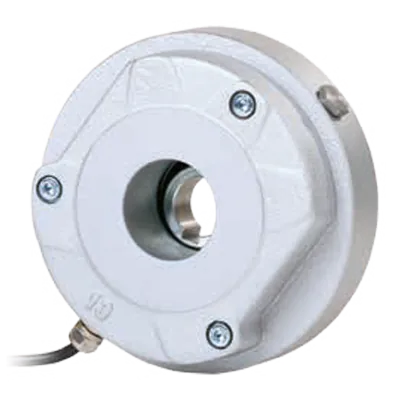

Precima FDB 13 spring-applied brake fixed, 204DC, Ø24H7
HV2052113237The Precima FDB 13 is a compact, dependable spring-applied brake delivering 20 Nm holding torque at 204 VDC, mounted on a Ø22 H7 hub. Its IP54/55-rated housing with sealing cap offers strong protection against dust and splash water, ensuring reliable performance in industrial, automation, and light outdoor environments.
With a factory-fixed air gap, installation is simplified and requires no adjustment. As a fail-safe brake, it engages upon power loss (spring-driven) and releases only when energized—ideal for emergency stops and secure holding.
Without power, it holds firmly; when energized, it disengages cleanly—making it suitable for conveyors, robotic positioning, assembly machinery, and more.
Available options include manual release, flange mounting, wear indicators, temperature monitoring, and low-noise or corrosion-resistant variants, providing flexibility to suit diverse application needs.
Made to order
Expected shipment:
More Information
Description
Key features:
- Brake size 13: Compact and space-efficient design suitable for various drive systems.
- Brake voltage 24VDC: Provides optimal braking power for quick and controlled stops.
- Brake torque 20Nm: Delivers strong and consistent braking force to enhance safety and precision.
- IP54/55 protection classification: Withstands challenging environmental conditions, ensuring durability and longevity.
- Sealing cap: Equipped with a sealing cap to protect against dust, debris, and moisture, further enhancing the brake's reliability and service life.
