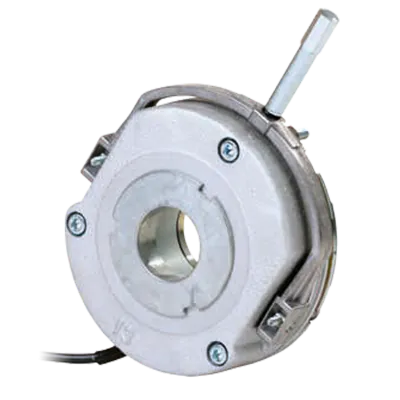

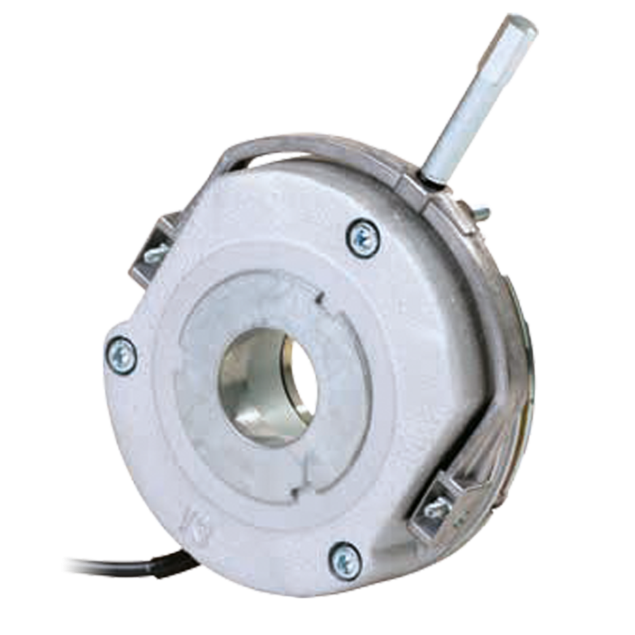

Precima FDB 10 spring-applied brake, fixed, 205VDC, 20H7Ø, 1m cable
HV2052110233AThe Precima FDB 10 is a reliable, compact spring-applied brake delivering 10 Nm of holding torque at 205 VDC, installed on a Ø20 H7 hub. Featuring an IP54/55-rated housing, this unit is fully sealed from dust and high-pressure washdown—ideal for industrial automation, outdoor equipment, conveyor systems, and hygienic processes.
This fixed-gap version comes with a factory-set air gap, ensuring fast, tool-free installation. As a fail-safe brake, it engages automatically during power loss (spring-driven) and releases cleanly only when energized—offering dependable performance for emergency stop and secure holding tasks.
When unpowered, it holds firmly; when electrified, it disengages promptly—supporting smooth motion in robotic arms, pick-and-place machines, packaging lines, and compact drive systems.
This version includes a 1 m cable for immediate integration. Optional enhancements include manual release, flange adapters, wear indication, temperature monitoring, low-noise or corrosion-resistant variants—allowing flexible adaptation to varying operational requirements.
Made to order
Expected shipment:
More Information
Description
Key features:
- Brake size 10: Compact and efficient, this brake is designed to fit seamlessly into different setups, making it highly versatile for a wide range of drive systems.
- Brake voltage 205VDC: The optimized voltage ensures consistent and reliable braking performance, providing precise control during deceleration and stopping.
- 1m cable: The included cable offers convenience and ease of installation, reducing the setup time and effort.
- Brake torque 10Nm: With a fixed braking torque of 10Nm, this brake delivers consistent and powerful stopping force, enhancing the safety of the system.
- IP54/55 protection classification: The robust IP54/55 protection ensures the brake's resistance to dust and water ingress, making it suitable for operation in challenging environments.
