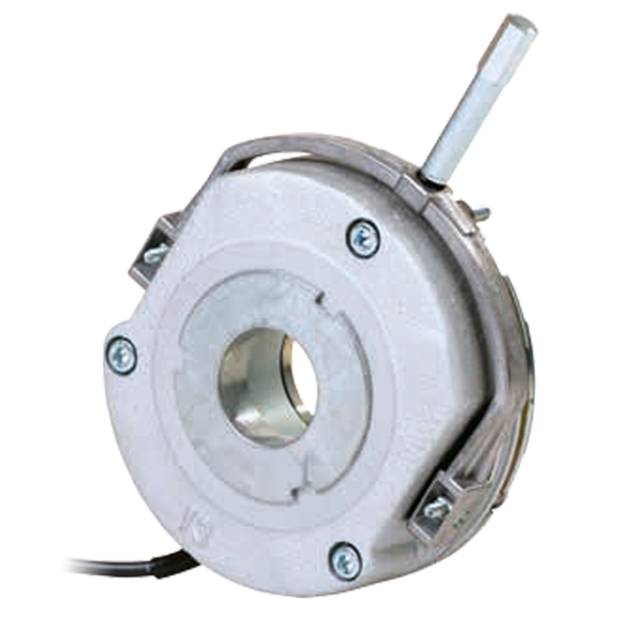

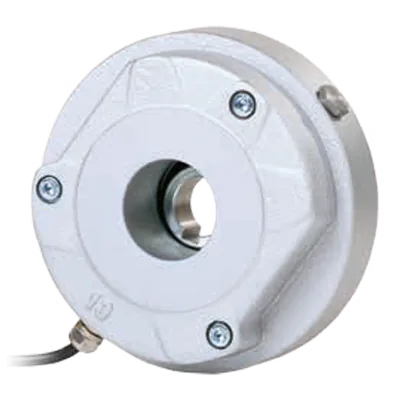

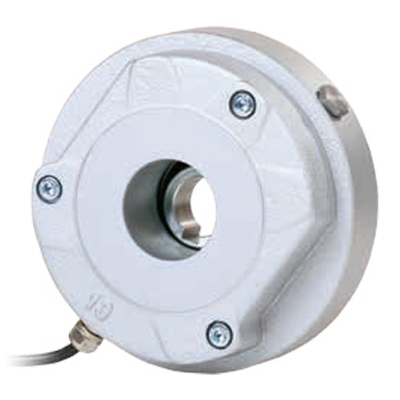

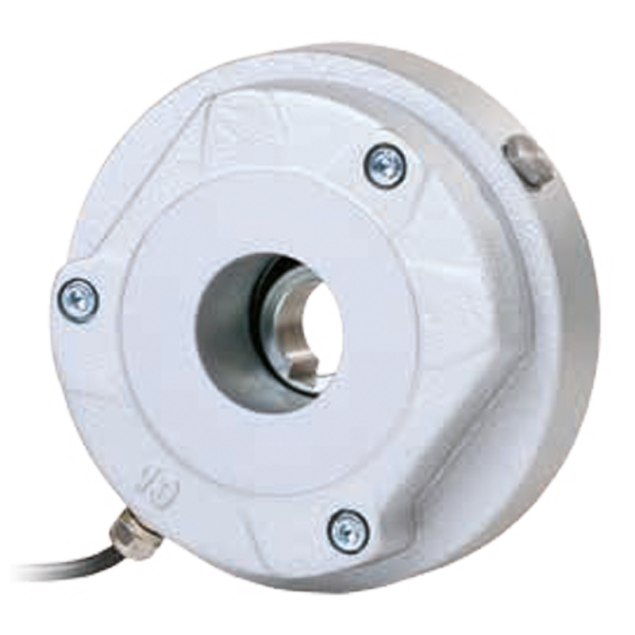

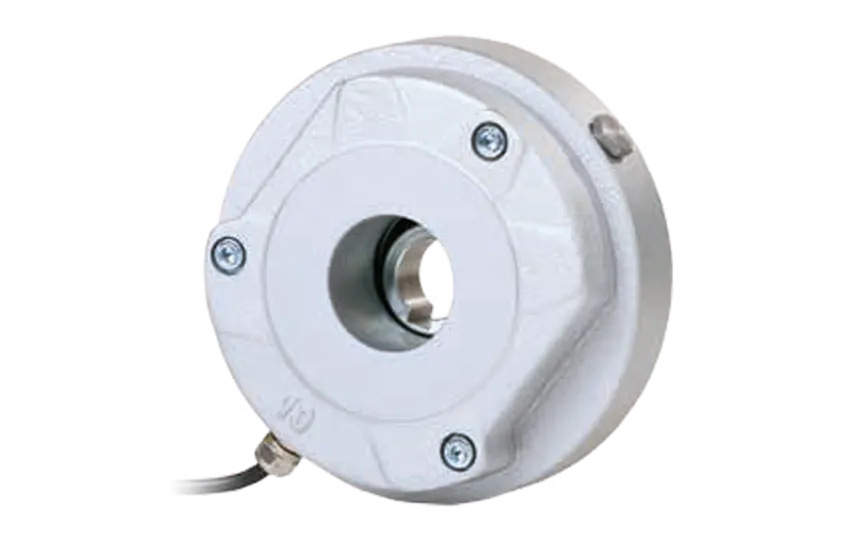

Precima FDB 08 spring-applied brake, fixed, 205VDC, 15H7Ø, 5m cable
HV2052108233A-5The Precima FDB 08 is a compact and robust spring-applied brake delivering 5 Nm of holding torque at 205 VDC, fitted with a precision Ø15 H7 hub. Its IP54/55-rated, sealed housing provides full protection against dust and high-pressure washdowns—ideal for compact automation units, robotic wrists, small conveyor drives, and harsh outdoor environments.
This fixed-gap variant comes with a factory-set air gap for easy, adjustment-free installation. As a fail-safe brake, it remains locked when unpowered and releases only upon energization—delivering dependable emergency-stop and safe-holding performance.
When not energized, the brake holds securely; upon energization, it releases cleanly—supporting controlled motion in pick-and-place units, small actuator modules, and positioning systems. This version includes a 5 m cable for flexible mounting and ease of electrical connection.
Optional features include manual release, flange adapters, wear sensors, temperature monitoring, low-noise or corrosion-resistant options—giving you flexibility to tailor the brake to your specific application needs.
Made to order
Expected shipment:
More Information
Description
Key features:
- Adjustable braking torque: Fine-tune the braking force to suit your specific requirements.
- Universal application: Perfectly designed for use across all areas of drive technology, ensuring versatility and broad applicability.
- Reliable performance: The brake guarantees consistent and dependable results, minimizing downtime and optimizing productivity.
- Robust build: Manufactured with high-quality materials, ensuring longevity and durability even under demanding conditions.
- Easy installation: The included 5m cable simplifies setup, reducing installation time and effort.
- Enhanced protection: IP54/55 classification safeguards against dust and water exposure, prolonging the brake's lifespan and reliability.
