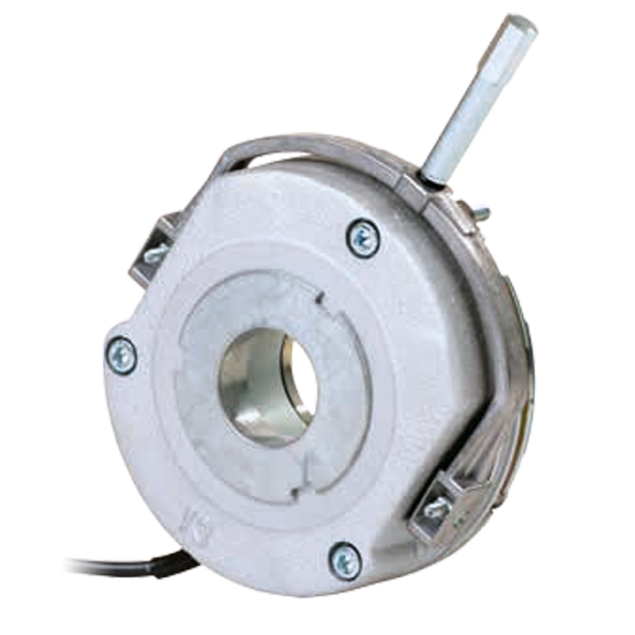

Precima FDB 10 spring-applied brake, fixed, 205VDC, 15H7Ø
HV2052110231SThe Precima FDB 10 is a robust and compact spring-applied brake delivering 10 Nm of holding torque at 205 VDC, designed around a Ø15 H7 hub for precise shaft alignment. Its IP66-rated housing provides complete protection from dust and high-pressure washdowns—perfect for compact conveyor drives, small servomotor assemblies, robotic wrist units, and outdoor industrial equipment.
This fixed-gap version features a factory-set air gap, eliminating the need for on-site adjustment and ensuring quick, error-free installation. As a fail-safe brake, it engages automatically when power is removed (spring tension applied) and only releases when energized—ideal for emergency stop, holding, or safety interlock functions.
When de-energized, the brake holds firmly; when energized, it disengages precisely—supporting smooth, responsive operation in positioning systems, pick-and-place applications, packaging lines, and compact drive modules.
Optional features include manual release, flange adapters, wear sensors, temperature monitoring, low-noise options, and corrosion-resistant finishes—making the FDB 10 highly adaptable to diverse and demanding environments.
Made to order
Expected shipment:
More Information
Description
Key features:
- Brake size 10: Compact and space-efficient design, suitable for installations with limited space constraints.
- Brake voltage 205VDC: Optimized voltage input for consistent and reliable braking performance.
- Brake torque 10Nm: Fixed braking torque of 10Nm ensures reliable and controlled stopping power for diverse applications.
- IP54/55 protection classification: Provides superior protection against dust and water ingress, making it ideal for challenging environments.
- Reliable and robust: Built with high-quality materials and precision engineering, ensuring a long-lasting and durable braking solution.
- Universal use: Suited for a wide range of drive technology applications, from industrial machinery to automation systems.
- Smooth braking: Offers smooth and controlled braking, preventing sudden stops and potential damage to equipment.
- Easy installation: Straightforward installation process allows for quick integration into existing systems.
- Low maintenance: Minimal maintenance requirements, reducing downtime and operational costs.
- Safety assurance: Ensures enhanced safety during operations, promoting a secure work environment.
