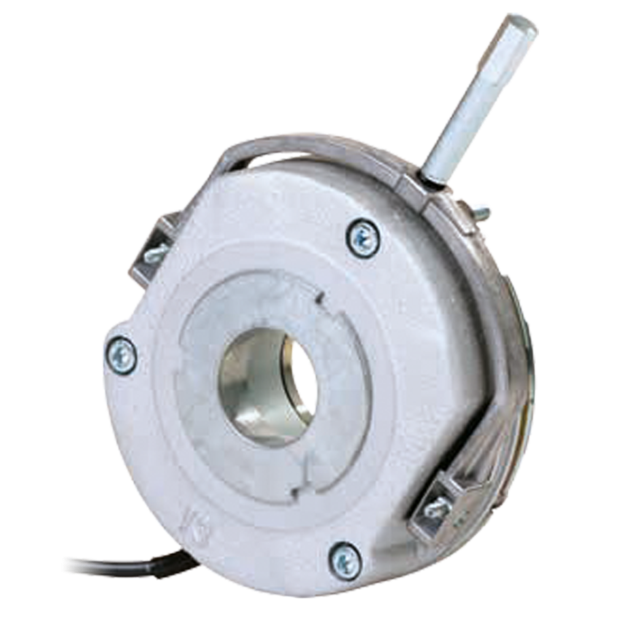

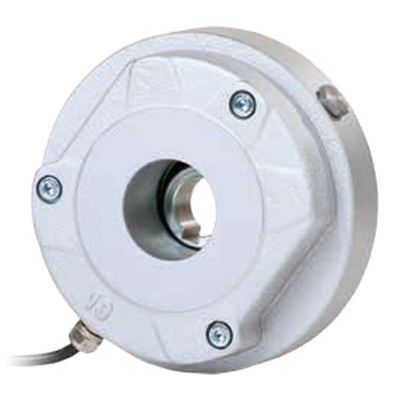

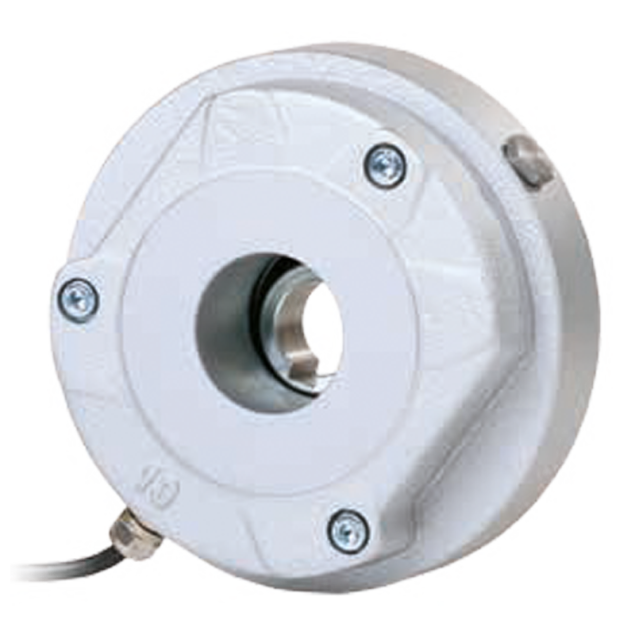

Precima FDB 15 spring-applied brake, adjustable, 48VDC, 24H7Ø
HV2052115233SThe Precima FDB 15 is a compact and robust spring-applied brake engineered for universal drive applications. Designed for 48 VDC operation, it delivers strong holding power with 40 Nm of braking torque through a single-disc assembly mounted on a Ø24 H7 hub. Its rugged housing features IP54/55 protection, making it suitable for industrial, lifting, or conveyor systems exposed to dust and splashing water.
This model offers adjustable torque via a rotatable collar, enabling precise customization to meet varying load demands. The factory-set air gap ensures quick, adjustment-free installation. As a fail-safe brake, it remains engaged during power loss (spring active) and only releases when energized—providing reliable security in emergency-stop or hold applications.
Common use cases include industrial conveyors, hoists, automation systems, machine tools, and elevator drives. Optional features include manual release, flange adapters, wear sensors, temperature monitoring, and low-noise or corrosion-resistant variants.
Made to order
Expected shipment:
More Information
Description
Key features:
- Brake size 15: Compact and space-efficient design, suitable for a wide range of applications where space is limited.
- Brake voltage 48VDC: Operates efficiently at 48VDC, providing consistent and precise braking control.
- Brake torque 40Nm: Delivers a powerful 40Nm braking torque, ensuring effective and secure stopping of rotational motion.
- Adjustable braking torque: The brake allows easy adjustment of the braking torque to suit specific application requirements.
- IP54/55 protection classification: With an IP54/55 rating, the brake is well-protected against dust and water ingress, making it suitable for both indoor and outdoor use.
- Reliable performance: Built with high-quality materials and precision engineering, the Precima FDB Spring Loaded Brake 15 guarantees consistent and reliable performance, reducing downtime and maintenance costs.
- Robust construction: Designed to withstand demanding operating conditions, this brake is durable and capable of handling heavy-duty applications.
- Versatile applications: Suitable for a wide array of industrial drive systems, including machinery, conveyor belts, industrial robots, and more.
