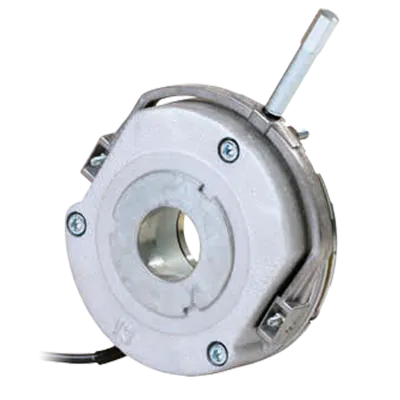

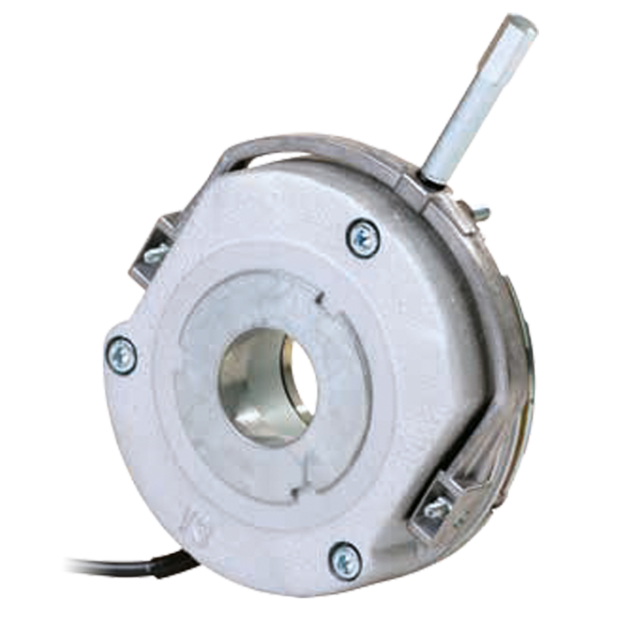

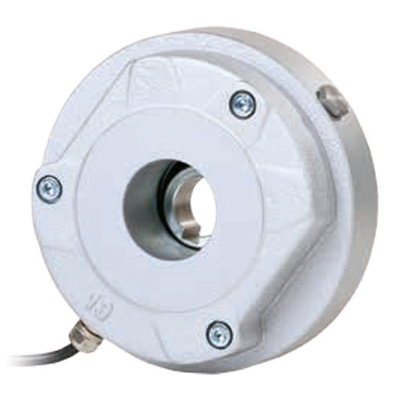

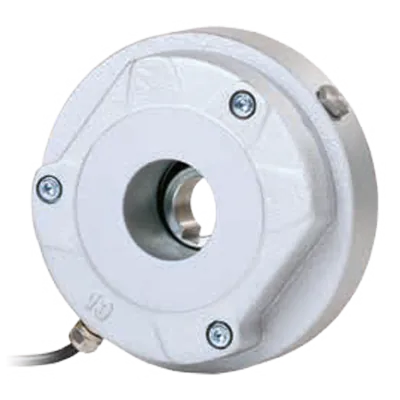

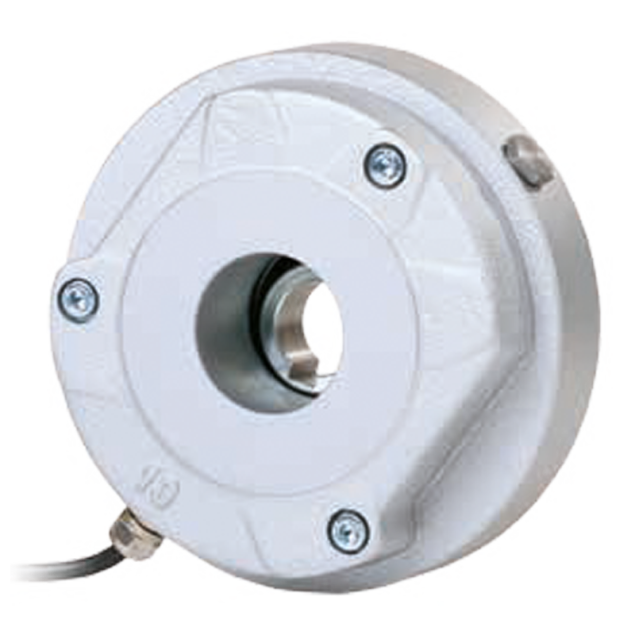

Precima FDB 13 spring-applied brake, adjustable, 48VDC, 19H7Ø
HV2052113232SThe Precima FDB 13 is a versatile spring-applied brake designed for industrial automation and drive systems. Operating at 48 VDC, it provides 20 Nm of holding torque through a single-disc assembly mounted on a Ø19 H7 hub. Its IP54/55-rated housing ensures protection against dust and water spray, making it ideal for conveyor systems, machine tools, and AGVs.
This model features an adjustable torque mechanism with a central collar, allowing precise customization to adapt to varying load requirements. The air gap is set at the factory, ensuring hassle-free installation. As a fail-safe brake, it engages automatically during power loss (spring-activated) and releases only when energized—offering dependable emergency-stop and holding functionality.
Designed for compact integration, it features a slim profile and lightweight design. Optional configurations include manual release, flange mounting, wear sensors, temperature monitoring, and low-noise or corrosion-resistant finishes, making it highly adaptable to specific applications.
Made to order
Expected shipment:
More Information
Description
Key features:
- Brake size 13: The compact and space-efficient design makes it suitable for a diverse range of drive systems, ensuring seamless integration into your existing setup.
- Brake voltage 48VDC: Operating at 48VDC, this brake offers efficient and precise control, guaranteeing optimal performance in varied operating conditions.
- Adjustable braking torque: With a maximum braking torque of 20Nm, the Precima FDB brake enables fine-tuning to suit specific requirements, allowing for enhanced customization and adaptability.
- IP54/55 protection classification: Engineered to withstand harsh environmental conditions, the brake boasts a robust IP54/55 rating, providing protection against dust, moisture, and other contaminants.
- Universal application: This brake proves its versatility by delivering consistent and dependable braking across a wide range of industries and applications, making it an ideal choice for various drive technology needs.
