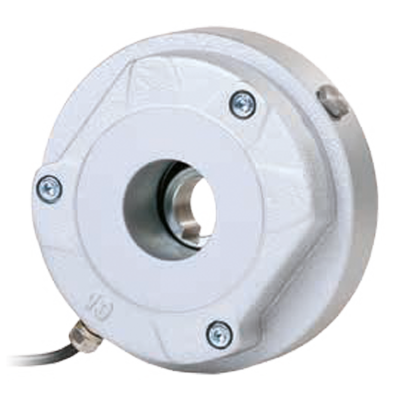

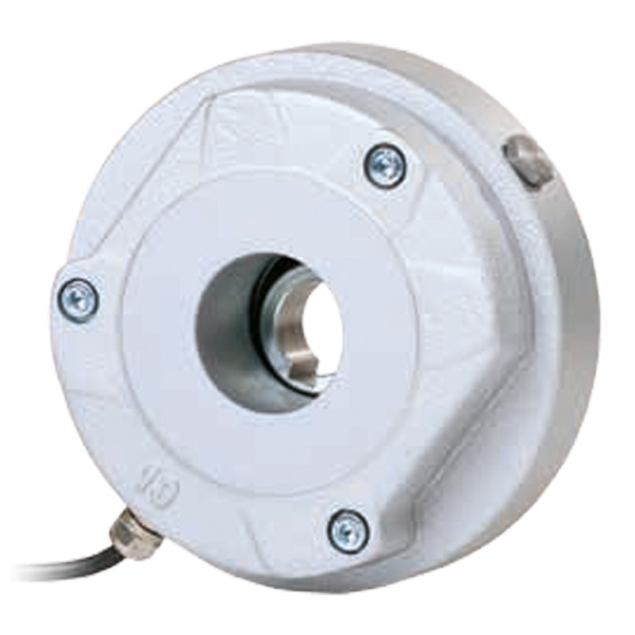

Precima FDW 10 spring-applied brake, 24VDC, 19H7Ø
HV2052208006The Precima FDW 10 is a compact, rugged spring-applied brake delivering 10 Nm of torque at 24 VDC, with a Ø19 H7 hub bore. Its fully sealed IP66 enclosure ensures full protection against dust and high-pressure water jets, making it ideal for harsh industrial, outdoor, and food-processing environments.
Designed as a fail-safe solution, the brake applies when unpowered (spring engaged) and releases only when energized, ensuring reliable stoppage in power failure or emergency situations. The factory-set air gap simplifies installation—no adjustments required—while the 48 mm overall height and compact form factor fit seamlessly into space-limited applications.
Typical uses include pitch and azimuth controls in wind turbines, conveyors, cranes, car-wash systems, and hoists. Additional features such as sealed manual release, encoder-ready hubs, temperature monitoring, anti-condensation heating, wear detection, and optional ATEX zone 22 compliance enable flexible customization.
In stock
Expected shipment:
More Information
Description
Key features:
- Dust- and waterproof: Built to withstand dusty and wet environments, providing optimal performance in challenging conditions.
- Brake size 10: Compact and efficient, offering a perfect balance between space-saving design and powerful braking capabilities.
- Brake voltage 24VDC: Operates on a standard 24VDC power supply, ensuring compatibility and ease of integration.
- Brake torque 10Nm: Boasting a robust braking torque of 10Nm, offering reliable and consistent braking performance.
- Protection class IP 66: Provides an level of protection against dust ingress and powerful jets of water, ensuring long-lasting functionality.
