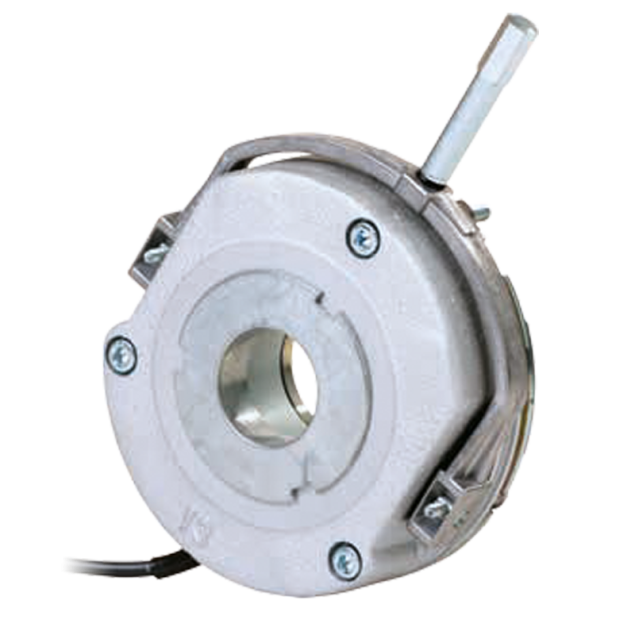

Precima FDB 10 spring-applied brake, adjustable, 48VDC, Ø19
HV2052210135The Precima FDB 10 is a compact and versatile spring-applied brake delivering 10 Nm of holding torque at 48 VDC, fitted onto a Ø19 H7 hub bore. Its IP54/55-rated housing provides full protection against dust and high-pressure water jets—perfect for industrial conveyor systems, outdoor automation, and washdown environments.
Featuring an adjustable torque mechanism via a central collar, this brake allows precise tuning to match varying load conditions. The air gap is factory-set for easy, no-adjustment installation. As a fail-safe brake, it remains engaged during power loss (spring force active) and only releases when energized—offering reliable emergency-stop and holding functionality.
Compact and easy to integrate, the FDB 10 supports smooth operation in AGVs, pick-and-place machines, packaging systems, and small positioning drives. Optional features include manual release, flange mounting, wear sensors, temperature monitoring, and low-noise or corrosion-resistant options—making it customizable for specific application needs.
Made to order
Expected shipment:
More Information
Description
Key features:
- Size 10: Perfectly sized for compatibility with a wide range of machinery and equipment.
- Adjustable braking torque: The brake allows for easy and precise adjustments of the braking torque, ensuring optimal control over the braking process.
- Brake torque of 10Nm: With a substantial brake torque capacity, it guarantees the prompt and secure halting of rotational or linear motion.
- IP54/55 protection classification: The brake is well-protected against dust and water ingress, making it suitable for both indoor and outdoor use in challenging environments.
