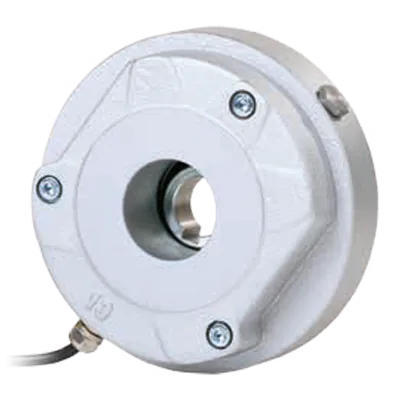

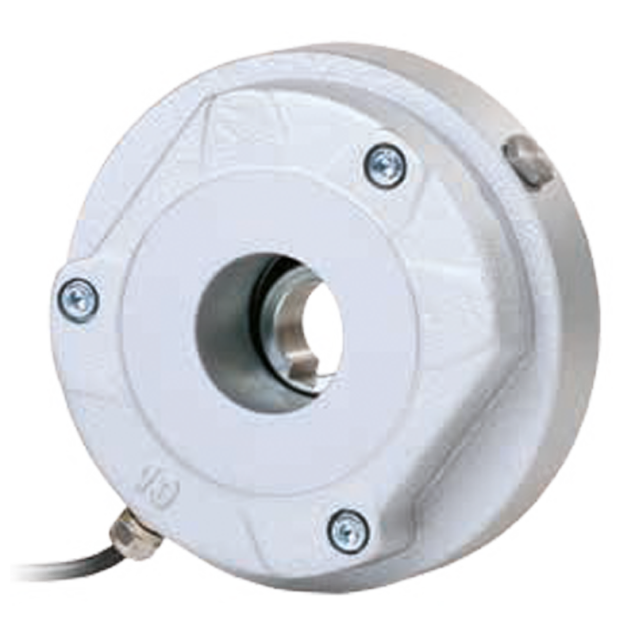

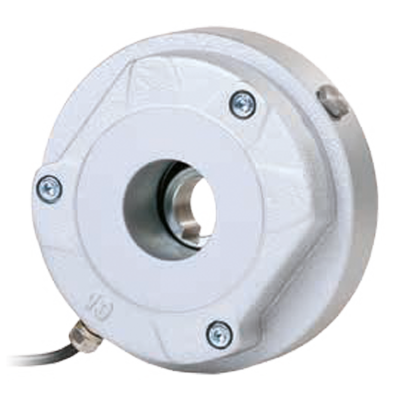

Precima FDB 13 spring-applied brake, fixed w. sealing cap, 48VDC, Ø20
HV2052113236The Precima FDB 13 is a compact and durable spring-applied brake delivering 20 Nm of holding torque at 48 VDC through a single-disc design mounted on a Ø20 H7 hub. Its IP54/55-rated housing with sealing cap offers robust protection against dust and water spray, ensuring dependable operation in industrial, automation, and light outdoor environments.
With a factory-fixed air gap, installation is simplified and adjustment-free. As a fail-safe brake, it engages upon power loss (spring-driven) and only releases when voltage is applied—making it ideal for emergency stops and secure holding.
Without power, the brake firmly holds; when energized, it disengages cleanly—supporting smooth operation in conveyors, pick-and-place systems, assembly equipment, and more.
Available options include manual release, flange mounting, wear indicators, temperature monitoring, and low-noise or corrosion-resistant variants—making the FDB 13 highly adaptable to specific application needs.
Made to order
Expected shipment:
More Information
Description
Key features:
- Brake size 13: Compact and space-efficient design for easy integration into drive systems.
- Brake voltage 48VDC: Operates efficiently with a standard 48VDC power supply, ensuring reliable performance.
- Hub 20Ø brake torque 20Nm: Provides a powerful and consistent braking force, suitable for various load capacities.
- IP54/55 protection classification: Offers excellent protection against dust and water ingress, ensuring longevity and durability even in harsh environments.
- Sealing cap: Equipped with a sealing cap for enhanced protection against external contaminants, increasing the brake's service life.
